Dielektrimeter für Isolieröl YDJ

DCHochspannungtragbar

Product Introduction

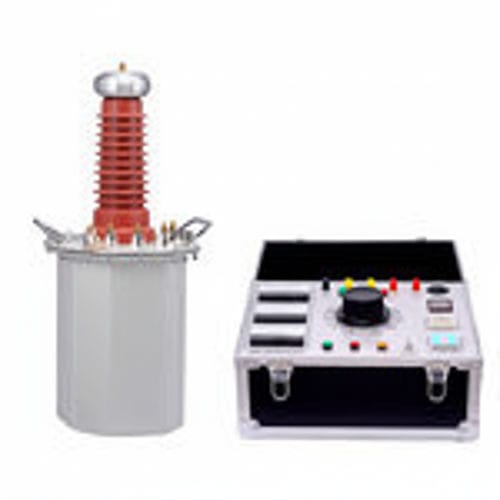

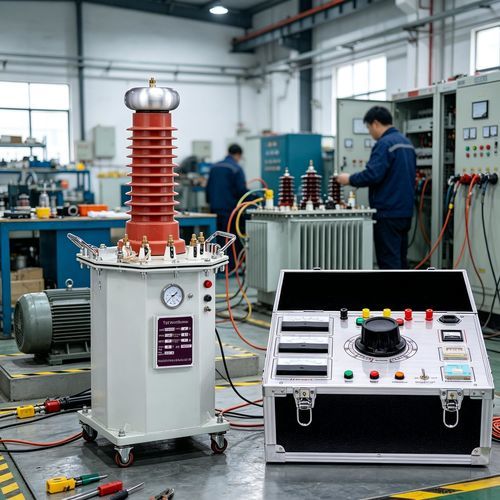

The YDJ Pointer 5kVA Oil-Immersed AC Test Transformer is a traditional high-voltage testing device that utilizes oil insulation to deliver stable AC withstand voltage tests on electrical equipment. With a 5kVA capacity, it is well-suited for testing medium-sized apparatus such as transformers and cables. The pointer-style analog interface provides clear, real-time readings of voltage and current. The oil-immersed design ensures effective heat dissipation and reliable insulation performance, making this classic tester an ideal choice for industrial and laboratory applications that demand robust dielectric strength validation.

Product Characteristics

• Superior Material & Reliable Quality – Carefully selected materials ensure reliable quality and excellent operational stability.
• High Voltage Margin & Low Partial Discharge – Designed with a large voltage margin, a compact corona ring, and minimal partial discharge levels.
• Compact & Lightweight Design – Uses advanced insulation materials for a smaller footprint and lighter weight to improve portability.

Technische Parameter (Auszug aus Tabelle)
specifications and models | capacity(kVA) | High Voltage(kV) | high-tension current(mA) | tension(V) | electricity(A) | ratio of transformation(high /rites) | temperature rise℃(30 minutes)
YDJ-3/50 | 3 | 50 | 60 | 200 | 15 | 500 | 10
YDJ-5/50 | 5 | 50 | 100 | 200 | 25 | 500 | 10
YDJ-10/50 | 10 | 50 | 200 | 200 | 50 | 500 | 10
YDJ-20/50 | 20 | 50 | 400 | 400 | 50 | 500 | 10
YDJ-30/50 | 30 | 50 | 600 | 400 | 50 | 500 | 10
YDJ-50/50 | 50 | 50 | 1000 | 400 | 125 | 500 | 10
YDJ-5/100 | 5 | 100 | 50 | 200 | 25 | 1000 | 10
YDJ-10/100 | 10 | 100 | 100 | 200 | 25 | 1000 | 10
YDJ-10/25 | 10 | 25 | 400 | 400 | 25 | 1000 | 10
YDJ-20/100 | 20 | 100 | 200 | 200 | 50 | 1000 | 10
YDJ-30/100 | 30 | 100 | 300 | 400 | 75 | 1000 | 10
YDJ-50/100 | 50 | 100 | 500 | 400 | 125 | 1000 | 10
YDJ-15/150 | 15 | 150 | 100 | 400 | 37.5 | 1000 | 10
YDJ-20/150 | 20 | 150 | 133 | 400 | 50 | 1000 | 10
YDJ-30/150 | 30 | 150 | 200 | 400 | 75 | 1000 | 10
YDJ-50/150 | 50 | 150 | 333 | 400 | 125 | 1000 | 10
YDJ-100/150 | 100 | 150 | 667 | 400 | 250 | 1000 | 10
YDJ-50/200 | 50 | 200 | 250 | 400 | 125 | 1000 | 10
YDJ-100/200 | 100 | 200 | 500 | 400 | 250 | 1000 | 10
YDJ-150/200 | 150 | 200 | 750 | 400 | 375 | 1000 | 10
YDJ-200/200 | 200 | 200 | 1000 | 400 | 500 | 1000 | 10
YDJ-300/200 | 300 | 200 | 1500 | 400 | 750 | 1000 | 10
YDJ-50/300 | 50 | 300 | 170 | 400 | 125 | 1000 | 10
YDJ-100/300 | 100 | 300 | 333 | 400 | 250 | 1000 | 10
YDJ-150/300 | 150 | 300 | 500 | 400 | 375 | 1000 | 10
YDJ-200/300 | 200 | 300 | 667 | 400 | 500 | 1000 | 10
YDJ-300/300 | 300 | 300 | 3000 | 400 | 750 | 1000 | 10

Anwendungen / Hauptanwendungsszenarien

• Power system testing: Test transformers, switchgear, relays and transmission lines using high voltage and high current.
• Insulation material testing: Dielectric withstand tests on cables, insulators, transformer windings, etc.
• Voltage withstand test: Partial discharge and leakage current tests to evaluate insulation level.
• Fault simulation testing: Short circuit, overvoltage and frequency response tests.
• Electronic device testing: Performance evaluation of components in liquid media.
• Mechanical engineering applications: Simulate wear and friction in oil-immersed conditions.
• Materials science research and automotive industry testing requiring oil-immersed environments.

Frequently Asked Questions (Auszug)

• Grounding and oil level: Ensure casing and X terminal of low-voltage winding are properly grounded and check oil level before operation.
• Voltage cannot rise: Possible causes include large line voltage drop, severe insulation breakdown of test sample, or poor contact/broken winding of voltage regulator.

Caractéristiques / spécifications techniques

• Modell (Beispiel für dieses Produkt): YDJ-5/50
• Kapazität: 5 kVA
• Bemessungshochspannung: 50 kV
• Hochspannungsstrom: 100 mA
• Niederspannungs-Eingangsspannung: 200 V
• Niederspannungs-Eingangsstrom: 25 A
• Transformationsverhältnis / Ratio: 500
• Temperaturanstieg (30 Minuten): 10 ℃
