Mini-ITX-Mainboard D3714 series

mSTXembeddedAMD Ryzen™

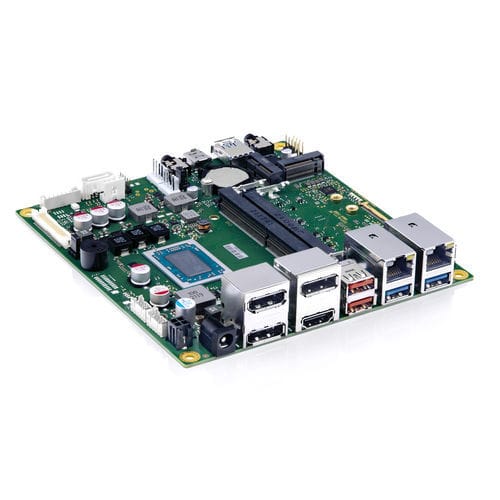

Industry motherboard with AMD Ryzen™ Embedded V1000/R1000 processor series (SoC)AMD Radeon™ Vega Graphics (SoC)Up to 3x DisplayPort V1.4 plus HDMI V2.0bDual Channel LVDS (24 Bit) and eDP V1.3 (4k)Designed for fanless applicationsSupports M.2 Key-M (SSD) and Key-E (WLAN/BT)The industrial motherboard D3714-V/R mSTX supports AMD Ryzen™ Embedded V1000 and R1000 processors with integrated AMD Radeon™ Vega graphics and can be used in applications with high graphic requirements such as casino gaming, medical displays, thin clients, and ultra-small industrial PCs. It is equipped with up to three DisplayPorts, one HDMI port, one Embedded DisplayPort, and a dual-channel LVDS (24bit), and can operate up to four independent displays in 4K resolution. Depending on the (graphic) performance requirements, 3 motherboard versions are available.Advantages of Kontron motherboards:Highest quality thanks to German development and productionStrict lifecycle management and reliable product maintenanceExtensive feature and tool setExcellent technical supportLow total cost considerationTechnical Specifications:Processor: AMD Embedded V1605B SoC, AMD Embedded R1102G SoC, AMD Embedded R1305G SoCChipset: SoCMain Memory: 2x DDR4 2400 SDRAM up to 32 GbyteGraphics Controller: Integrated AMD Radeon™ Vega GraphicsDisplay: Up to 3x DPP V1.4 incl. DP++ support, 1x HDMI V2.0b, 1x embedded DP (eDP V1.4; supporting 4K resolutions; shared with DPP1), 1x Dual-Channel 24bit LVDS (shared with HDMI). Supported display combinations:D3714-V2: 2x DPP + 1x LVDS + 1x eDP, 3x DPP + 1x LVDS, 2x DPP + 1x HDMI + 1x eDP, 3x DPP + 1x HDMID3714-R2: 1x DPP + 1x LVDS + 1x eDP, 2x DPP + 1x LVDS, 1x DPP + 1x HDMI + 1x eDP, 2x DPP + 1x HDMID3714-R1: 1x LVDS + 1x eDP, 1x DPP + 1x LVDS, 1x HDMI + 1x eDP, 1x DPP + 1x HDMIAudio Controller: Realtek ALC256Audio: 5.1-channel, High Definition Audio CodecEthernet: Intel® i210 & Realtek RTL8111H with 10/100/1000 MBit/sUSB: 2x USB 2.0 (by header), 2x USB 3.2 Gen1 (rear), 2x USB 3.2 Gen2 (rear), 1x USB 3.2 Gen1 (front), 1x USB 3.2 Gen1 (Type C, front)Serial: 1x RS232 (by header); 1x RS232/422/485 (by header)Available I/Os: GPIO (by header)SATA: 1x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCIExpansion: 1x M.2 PCIe x4 (Key-M: 2230/2242/2280), 1x M.2 WLAN/Bluetooth (Key-E: 2230, supports PCIe x1/Gen3 + USB 2.0)Power connector: External/Internal DC-In (DC Jack/4-Pin Micro-Fit)Input Voltage: DC Input 12 V or 19-28 V, max. 5 A/65 W (external DC-In), max. 8 A/100 W (internal DC-In)BIOS: AMI Aptio 5.x (UEFI) BIOSWatchdog: 3 level HW Watchdog (BIOS POST/BIOS Boot/OS)Real Time Clock: IntegratedCooling: D3714-V2: 2x PWM fan (CPU/System), D3714-Rx: 1x PWM fan (CPU)Operating System: MS Windows 10, Linux-64Mechanical Dimensions: Mini-STX: 5.5“ x 5.8“ (140 x 148 mm)Operating Temperature: -10 °C – 60 °CHumidity: 5%-85%Certifications: CE Class-B, FCC-B verified, cTÜVus acc. IEC62368-1
