CPU-Karte / CompactPCI CP3005-V

Intel® Celeron®9th Generation Intel® Core™SATA

Overview

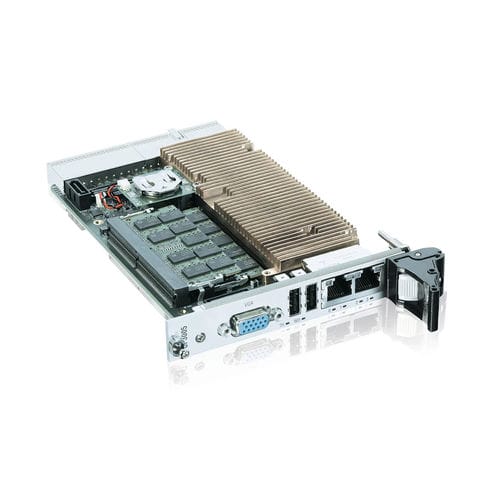

Value 3U CompactPCI CPU Board with Intel® Celeron®. Low budget series designed for cost sensitive programs in Industry and Transportation. Long term availability commitment of 10 years or more.

Highlights

• Low budget series with Intel® 9th Gen Celeron®
• Long term programs: 10 years or more
• Expansions for I/O, storage, XMC, M.2 flash

Features

• High flash capacities: 30 – 512 GByte M.2 SATA flash suitable even for mass storage; additional M.2 flash on 8HP extension up to 1 Terabyte
• Memory bandwidth: 32/16/8 GByte dual-channel up to DDR4-2400 speeds; ECC option available
• Connectivity: USB 3.0; SATA 6 Gbit/s; PCI Express®; 3x Gbit Ethernet with Wake-on-LAN
• Variety of extensions: Mezzanines for 2.5” HDD/SSD; XMC; second M.2 SATA module; Rear I/O backward compatible
• Security: Hardware based encryption; TPM 2.0

Investment & Lifecycle
10 years lifetime or even more, and Kontron’s commitment to a rich CompactPCI portfolio reduce total cost of ownership and make CP3005-V a safe investment.

caractéristiques / spécifications techniques

• Form factor: 3U CompactPCI CPU Board
• Model: CP3005-V
• CPU family: Intel® Celeron® (9th Gen, value series)
• Flash storage (M.2 SATA): 30 – 512 GByte onboard; optional additional M.2 up to 1 TB via 8HP extension
• Memory: Dual-channel DDR4 up to DDR4-2400; available in 32 GB, 16 GB, 8 GB configurations; ECC option
• Storage interfaces: SATA 6 Gbit/s; M.2 SATA support
• Expansion interfaces: PCI Express®, XMC, mezzanine for 2.5" HDD/SSD, rear I/O
• USB: USB 3.0
• Ethernet: 3 x Gigabit Ethernet (with Wake-on-LAN)
• Security features: Hardware encryption, TPM 2.0
• Target markets: Industry and Transportation (cost-sensitive, long-term programs)
• Product lifetime commitment: 10 years or more
