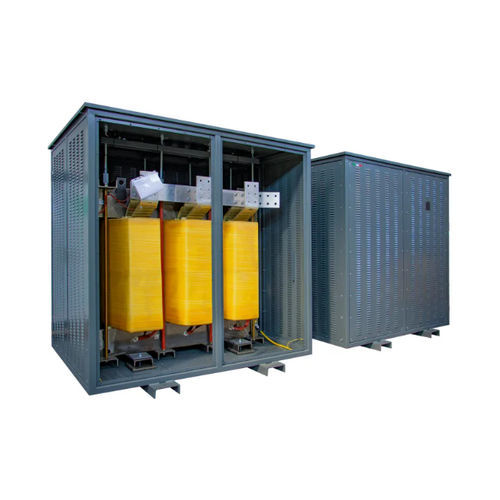

Isolationstransformator DYN11 K13 AL IP21

trockenfür den InneneinsatzIEC

Kurzbeschreibung
Der DYN11 K13 AL IP21 von Ortea Next ist ein Niederspannungs-Isoliertransformator für industrielle Anlagen mit harmonikareichen Lasten. Er bietet galvanische Trennung zwischen Primär- und Sekundärseite und verfügt über einen geerdeten elektrostatischen Schirm zur Reduzierung von Störungen und zur Erhöhung der Sicherheit.

Produkttyp
NIEDERSPANNUNGS-ISOLIERTRANSFORMER

Varianten
Part number: DYN11 K13 AL IP21 30 | Power: 30 kVA | In-rush current: 24 A | No-load losses: 350 W | Load losses: 850 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 40 | Power: 40 kVA | In-rush current: 15 A | No-load losses: 410 W | Load losses: 1000 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 50 | Power: 50 kVA | In-rush current: 15 A | No-load losses: 450 W | Load losses: 1080 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 63 | Power: 63 kVA | In-rush current: 15 A | No-load losses: 630 W | Load losses: 1150 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 70 | Power: 70 kVA | In-rush current: 15 A | No-load losses: 680 W | Load losses: 1210 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 80 | Power: 80 kVA | In-rush current: 15 A | No-load losses: 740 W | Load losses: 1320 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 90 | Power: 90 kVA | In-rush current: 13 A | No-load losses: 780 W | Load losses: 1380 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 100 | Power: 100 kVA | In-rush current: 13 A | No-load losses: 870 W | Load losses: 1520 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 110 | Power: 110 kVA | In-rush current: 13 A | No-load losses: 920 W | Load losses: 1640 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 125 | Power: 125 kVA | In-rush current: 13 A | No-load losses: 960 W | Load losses: 1880 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 140 | Power: 140 kVA | In-rush current: 12 A | No-load losses: 1100 W | Load losses: 1980 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 160 | Power: 160 kVA | In-rush current: 11 A | No-load losses: 1200 W | Load losses: 2120 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 180 | Power: 180 kVA | In-rush current: 11 A | No-load losses: 1290 W | Load losses: 2280 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 200 | Power: 200 kVA | In-rush current: 10 A | No-load losses: 1430 W | Load losses: 2420 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 225 | Power: 225 kVA | In-rush current: 10 A | No-load losses: 1470 W | Load losses: 2620 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 250 | Power: 250 kVA | In-rush current: 10 A | No-load losses: 1620 W | Load losses: 2850 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 280 | Power: 280 kVA | In-rush current: 10 A | No-load losses: 1730 W | Load losses: 3180 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 315 | Power: 315 kVA | In-rush current: 9 A | No-load losses: 1890 W | Load losses: 3600 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 350 | Power: 350 kVA | In-rush current: 9 A | No-load losses: 2100 W | Load losses: 4100 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 400 | Power: 400 kVA | In-rush current: 9 A | No-load losses: 2250 W | Load losses: 4530 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 500 | Power: 500 kVA | In-rush current: 8 A | No-load losses: 2780 W | Load losses: 5250 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 630 | Power: 630 kVA | In-rush current: 7 A | No-load losses: 3000 W | Load losses: 6180 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 800 | Power: 800 kVA | In-rush current: 6 A | No-load losses: 4050 W | Load losses: 7180 W | Vcc %: 4.5
Part number: DYN11 K13 AL IP21 1000 | Power: 1000 kVA | In-rush current: 6 A | No-load losses: 4950 W | Load losses: 8450 W | Vcc %: 4.5
Part number: DYN11 K13 AL IP21 1250 | Power: 1250 kVA | In-rush current: 5 A | No-load losses: 6200 W | Load losses: 10400 W | Vcc %: 5
Part number: DYN11 K13 AL IP21 1600 | Power: 1600 kVA | In-rush current: 5 A | No-load losses: 7600 W | Load losses: 12250 W | Vcc %: 5 | Data Sheet: available

Technische Daten (Auszug)

• Frequenz: 50 Hz
• K-Faktor: 13
• Eingangs- / Ausgangsspannung: 400 / 400 V
• Anschluss Primärwicklung: Dreieck
• Anschluss Sekundärwicklung: Stern + N
• Vektorgruppe: Dyn11
• Kernmaterial: M270 magnetischer Stahl
• Wicklungsmaterial: Aluminium
• Elektrostatischer Schirm zwischen Primär- und Sekundärseite, geerdet
• Max. Umgebungstemperatur: 40 °C
• Isolationsklasse / Thermische Klasse: H
• Isolationsniveau: 3
• Temperaturerhöhung: 125
• Max. Höhe über NN: 1000 m
• Umwelt - Klima - Brandschutzklasse: E1 - C1 - F0
• Installation: Innen
• Schutzart: IP21
• Referenznormen: EN 60076 / IEC 61558 (sofern zutreffend)
