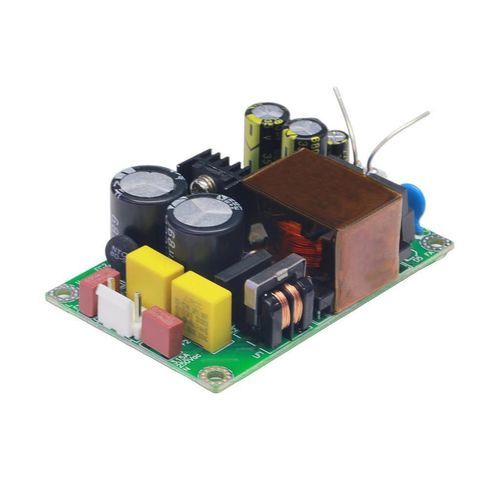

Stromversorgung / open frame TPS-MPT36S-24V

AC/DCgesteuertfür Industrieanwendungen

TPS-MPT36S-24V Single Output Open Frame Power SupplyThe TPS-MPT36S-24V is a high-performance member of the TPS-MPT36S High Voltage Series single output open frame power supply, engineered to deliver stable and efficient power for industrial applications requiring high voltage compatibility. As a 5V/12V/24V single output power supply, it provides a consistent 24V output with a rated current of 1.5A (176-500VAC) and a current range of 0.1~1.5A under natural cooling, offering a rated power of 36W, making it part of the 30W/36W open frame power supply range.As a 100V-500VAC/141V-707VDC input power supply, it supports a wide input range, enabling versatile operation in diverse power grids, including compatibility with 110V/220V/380V systems. It features compact dimensions of 76×50×26.5mm and a lightweight design of approximately 95g, ideal for space-constrained installations.This power supply boasts a 3000VAC isolated withstand voltage, qualifying it as a 3000VAC isolated withstand voltage power supply for safe electrical separation. It is a regulated output low ripple power supply with a maximum ripple of 80mVp-p, ensuring stable power for sensitive equipment. Equipped with comprehensive safeguards, it is an output short-circuit over current over power protection power supply, featuring overload (120%~180% of rated power) protection in hiccup mode with automatic recovery after fault removal.As a high efficiency high reliability power supply, it offers a typical efficiency of 89% and operates reliably within an ambient temperature range of -30℃~60℃ (refer to derating curve) and 20~90% RH (non-condensing), standing as a -30℃~60℃ temperature range power supply. Compliance-wise, it meets strict standards as a GB 4943.1-2011 compliant power supply and EN55032 Class A EMC power supply.Key FeaturesSeries Affiliation: Part of the TPS-MPT36S High Voltage Series single output open frame power supply, ensuring consistent quality for high-voltage applications.Wide Input Range: Functions as a 100V-500VAC/141V-707VDC input power supply, supporting diverse power grids including 110V/220V/380V.Environmental Adaptability: Operates as a -30℃~60℃ temperature range power supply, suitable for extreme temperature conditions.High Isolation: A 3000VAC isolated withstand voltage power supply, ensuring safe electrical separation between input and output.Stable Output: A regulated output low ripple power supply with max ripple 80mVp-p, suitable for sensitive equipment.Comprehensive Protections: Serves as an output short-circuit over current over power protection power supply, with hiccup mode and automatic recovery.Efficient and Reliable: A high efficiency high reliability power supply with 89% typical efficiency and robust performance.Power Specifications: A 5V/12V/24V single output power supply with 24V output, 1.5A rated current, and 36W rated power (part of 30W/36W options).Compact Design: With 76×50×26.5mm dimensions and 95g weight, saving installation space.Compliance: A GB 4943.1-2011 compliant power supply and EN55032 Class A EMC power supply, meeting strict safety and EMC standards.SpecificationsParameterValueDimensions (L*W*H)(mm)76*50*26.5mmEfficiency89%Input Current<0.8AInput Voltage100-500Vac, 141-707VdcOutput Current1.5AOutput Power36WOutput Voltage24VWeightApprox. 95g
