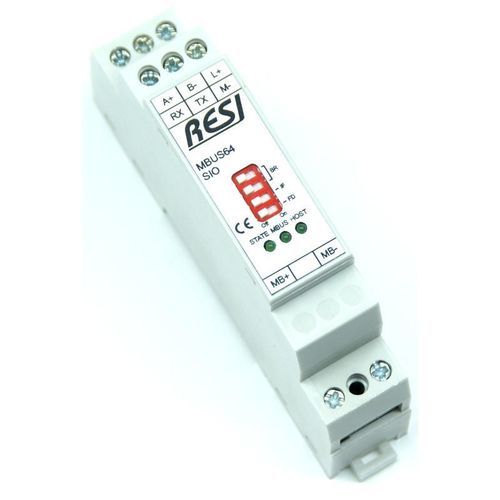

Gateway für Kommunikation RESI-MBUSx series

IndustrieTelemetrieEthernet

Overview
FAST GROWING MARKET. SMART METER INTEGRATION. BE A PART OF IT. USE OUR MBUS GATEWAYS. RESI has more than 30 years of experience in the in-house development of high quality products. We produce within Europe and offer competent technical support. We value the long life cycle of our products and repair our products ourselves. Together with ecological packaging, we make the world a little greener.

FOR WHAT ?
Our MBUS product line was developed for the read-out of smart meters (read-out the consumption of electricity, water, heat, cold or gas). MBUS is an international standard and almost every manufacturer offers smart meters with an MBUS interface. The data can be read out via the widely used MODBUS protocol.

WHICH VARIANT?

• If you have a recording system (SCADA system, PLC or DDC) with RS232/RS485 interface or Ethernet interface: use RESI-MBUSx-SIO or RESI-MBUSx-ETH gateways
• If you want to evaluate the MBUS protocol directly with your controller: use RESI-MBUSx-LVL or RESI-MBUSxLVL-ETH gateways
• If you use meters that support the MBUS protocol but have an RS232 interface: use RESI-MBUSxR2-SIO or RESI-MBUSxR2-ETH gateways
• If you use meters that support the MBUS protocol but have an RS485 interface: use RESI-MBUSxR4-SIO or RESI-MBUSxR4-ETH gateways

Product options (available on this product page)

• Interface MBUS gateway: 1xRS232; 1xRS232+1xRS485; 1xEthernet (default selection: 1xRS232+1xRS485)
• Number of meters: 2 meter; 8 meter; 24 meter; 48 meter; 64 meter (default selection: 24 meter)
• Protocol MBUS gateway: MODBUS protocol (default) or MBUS protocol

HOW TO CONFIGURE?
Use the free RESIConfigurator software to parameterize and test the gateways.

Available documentation (selection)

• RESI-CATALOG-GATEWAYS-EN-GW-7-RESI-MBUSx-SIO.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-8-RESI-MBUSx-ETH.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-11-RESI-MBUSx-LVL.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-12-RESI-MBUSxLVL-ETH.pdf
• RESI-FLYER-MBUS-2020-EN10.pdf
• RESI-M-xxx-SIO-ETH-EN.pdf
• RESI-M-MBUSxLVL-ETH-EN.pdf
• RESI-PA-RESI-MBUS24-SIO-DE-EN.pdf
• RESI-PA-RESI-MBUS24-ETH-DE-EN.pdf
• RESI-PA-RESI-MBUS24-LVL-DE-EN.pdf
• RESI-QA-MBUS-EN10.pdf
• RESI-DECLARATION-OF-CONFORMITY-CE-MBUSx-EN.pdf

Notes
The product family supports read-out of electricity, water, heat, cold and gas meters. Multiple interface, meter-count and protocol options are offered to match SCADA systems, PLCs or controllers.

Caractéristiques / spécifications techniques

• Marque: RESI
• Série / dénomination commerciale: RESI-MBUSx
• Référence produit (exemple pour la variante affichée): RESI-MBUS24-SIO
• Interfaces (exemples de variantes): 1xRS232; 1xRS232+1xRS485; 1xEthernet
• Nombre de compteurs pris en charge (variants): 2, 8, 24, 48, 64
• Protocoles supportés: MODBUS (par défaut), MBUS
• Usage principal: lecture de compteurs intelligents (consommation d'électricité, eau, chaleur, froid, gaz)
• Production: fabriqué en Europe (longue durée de vie et réparation interne selon fabricant)
• Logiciel de configuration: RESIConfigurator (logiciel gratuit pour paramétrage et test)
• Prix HT (produit principal / attribut sélectionné): 201.80 EUR
• Devise: EUR
• Unité de vente: pièce
• Quantité disponible indiquée sur la page: 10 (quantité totale toutes versions: 142)
• Identifiant produit (id): 5
• Images disponibles (nombre): 13
