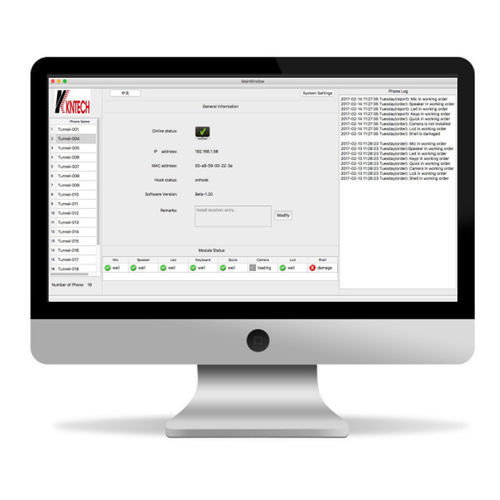

KNTECH Telephone Management System is designed for control office to monitor the Emergency Call Point in real time to ensure all phone stations are in good working status. The system consists of a Windows software package (TSS-1000) running on a PC and the Emergency Call Point device KNSP-19. All Emergency Call Point devices have monitoring and self-diagnostic functionality, including automatic self-test of microphone and loudspeaker with a configurable schedule. At least every 24 hours, all Emergency Call Points send their health/fault status to the TSS-1000 control room to display status; this data is also available to relevant maintenance subscribers. Symbols, icons and color codes are provided to simplify identification of monitoring status. The system is highly reliable, with simple installation and operation. Phone calls have higher priority while self-check tasks are performed.

Remote testing and programmable details

• Self monitoring and diagnostic functions.
• The telephone reports to the TSS-1000 in real time when any of the following occur:
  • Keypad or emergency call button gets stuck.
  • Handset microphone or receiver broken, or handset cord broken.
  • Ring indicator LED broken.
  • Buzzer broken.
  • Telephone enclosure/box opened.

Specification (table)
Model: KNSP-19 Telephone with Diagnostic System
Construction: Robust aluminium alloy die-cast body
Dimensions (W*H*D): 320*205*120mm
Weight: 5.7kg
Operating Temperature: -25°F to +158°F / -40°C to +70°C
Relative Humidity: Up to 95% non-condensing
Protection: IP66, vandal-resistant and water-resistant design
Communication: Full duplex 2-way handset communication
Call Control Signaling: SIP Info (DTMF), RFC 2833 (DTMF)
Audio Codes: G.711, G.722, G.729
Power: Power over Ethernet IEEE802.3af (Class 0); local power 12Vdc; Idle 2W, Max 10W
Auxiliary Contacts: 1 Aux Output, dry contact
Contact Ratings: Load: Resistive load; Rated load: 0.3 A at 125 VAC; 1 A at 30 VDC; Rated carry current: 1A; Max. switching voltage: 125 VAC, 60 VDC; Max. switching current: 1A
Network: 10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
IP Protocols: IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
LAN Protocols: Power over Ethernet (PoE, 802.3af), WLAN (IEEE 802.3af), Network Access / Control (IEEE 802.1x), STP (IEEE 802.1d), RSTP (IEEE 802.1d-2004)
Programming: Non-volatile flash memory programming and configuration through Web GUI
Management and Operation: DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
Echo cancellation code: G.167 / G.168
Keypad: 0~9 free dial, last number redial, speed dial 1 and speed dial 2

Caractéristiques / spécifications techniques

• Model: TSS-1000 (system software) and KNSP-19 (telephone with diagnostic)
• Construction: Aluminium alloy die-cast body (robust, vandal-resistant)
• Dimensions: 320 x 205 x 120 mm
• Weight: 5.7 kg
• Operating temperature range: -40°C to +70°C
• Relative humidity: up to 95% non-condensing
• Ingress protection: IP66
• Communication: Full duplex 2-way handset
• Signaling and audio: SIP Info (DTMF), RFC2833, G.711 / G.722 / G.729
• Power options: PoE (IEEE802.3af) or 12 V DC local power; idle 2W, max 10W
• Auxiliary output: 1 dry contact (rated switching/current details included in specifications)
• Network: 10/100Base-TX Ethernet, RJ45 (Cat5e+)
• Management: Web GUI, remote software upgrade, centralized monitoring
