Gateway für Kommunikation KNMMG-128

VoIPSIPEthernet

Summary

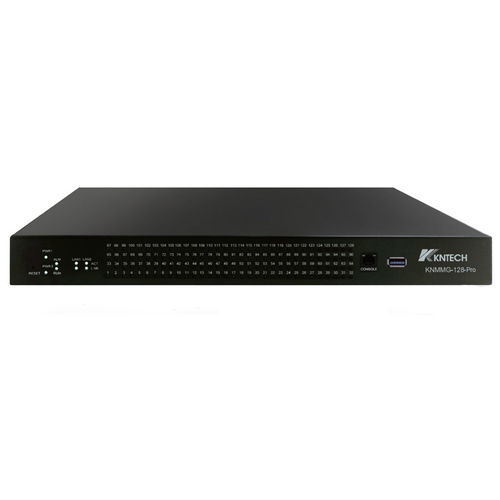

The KNMMG-128 FXS analog gateway is a multi-functional media gateway providing connectivity between analog phones, fax machines or analog PBXs and VoIP networks. The unit is a high-density 1U gateway supporting up to 128 FXS voice interfaces via user-pluggable boards and RJ45 interface standards. It supports standard SIP and RTP protocols and is compatible with BroadSoft, Asterisk and FreeSWITCH platforms.

Model & Mechanical
Model: KNMMG-128
Size: 43.6cm * 60cm * 4.5cm (1U)
Material: not specified

Variants
KNMMG-128: Supports 128 FXS ports
KNMMG-128-Pro: Supports 128 FXS ports. Dual AC power supply ports.

Key Features

• High density gateway: 128 FXS ports in 1U via user boards plugging
• Supports IPv4
• Line length up to 5 km (MAX)
• Support SNMP
• Multiple codecs supported: G.711 A/U, G.723.1, G.729 A/B, iLBC
• Compatible with BroadSoft, Asterisk and FreeSWITCH
• Supports SIP and RTP protocols

Advanced Functions

• Connect to a variety of VoIP providers for flexible deployment
• Integrate with existing telephone systems for smooth migration to VoIP

Benefits

• Scalability: can expand with business needs
• Flexibility: adaptable to businesses of different sizes
• Cost savings: reduces need for traditional PBX and long-distance costs
• Improved call quality: modern codecs and echo cancellation improve voice quality

Other Product Illustrations
Includes detailed pictures and size display images illustrating the gateway front/back and form factor.

Caractéristiques / spécifications techniques

• Product type: FXS analog/media gateway
• Model: KNMMG-128 (also KNMMG-128-Pro variant)
• FXS ports: up to 128 via user boards
• Form factor: 1U, size 43.6cm x 60cm x 4.5cm
• Power (Pro): dual AC power supply ports (KNMMG-128-Pro)
• Interfaces: RJ45 intercom/standard interfaces for user boards
• Protocols: SIP, RTP
• Compatibility: BroadSoft, Asterisk, FreeSWITCH
• Network: IPv4
• Management: SNMP support
• Line length: up to 5 km (MAX)
• Codecs: G.711 A/U, G.723.1, G.729 A/B, iLBC
• Functions: voice and fax processing, user-board modular expansion
