Fernverwaltungssystem NMSX1

Overview
The NMS server software is based on the BS structure. The installation and operation environment is a Linux server. It is accessed through the web browser WEB-GUI.

Functions and Management Scope

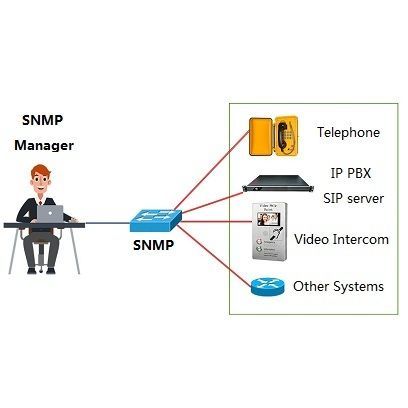

• Performs network management on all devices in the system based on the SNMP protocol.
• Management objects include: IP PBX, Recorder, office telephones, subway station telephones, tunnel telephones and all telephones registered to the system.
• Map navigation to quickly locate the location of each phone terminal.
• Real-time view of the health status of each managed object.
• Alarms: any alarms in terminals, IP PBX or RECORDERS are reported immediately.

Software & Licensing

• Software Model number: S- NMS-X1-0.0.4-13
• Description: Network Management System software
• License SKU: KNNMS-X1-SNMP-0.0.4-13
• Description: KNNMS-X1 Network Management system license
• Licence SKU for management authority 28 account number (management authority for 28 accounts)
• For dispatcher Agent: KNNMS-X1-SNMP-0.0.4-13-AG28
• For management Admin: KNNMS-X1-SNMP-0.0.4-13-AD28

Server Hardware
Hardware SKU: KNSERBER-HW1

Interfaces

• Trunking gateway: Interface to trunking radio system.
• VoIP gateway: Interface to other telephone systems.
• SIP protocol: Interface to other PA systems.
• SIP protocol: Interface to other SCADA systems.

System & Detailed Features
The system provides WEB-GUI browser login, map navigation for dispatchers to locate terminals, real-time monitoring and health detection, and alarms report lists for administrators.

Application
The SNMP unified network management system is mainly used in large telephone dispatching systems. The system can be used in subways, stations, industrial construction sites to manage groups of terminals in batches or to manage a single terminal.

Caractéristiques / spécifications techniques

• Product name: SNMP Unified Network Management System
• Commercial model: NMSX1
• Software model number: S- NMS-X1-0.0.4-13
• License SKU: KNNMS-X1-SNMP-0.0.4-13 (including AG28 and AD28 variants for dispatcher and admin)
• Hardware SKU: KNSERBER-HW1
• Supported management objects: IP PBX, Recorder, office telephone, subway station telephone, tunnel telephone, registered telephones
• Access method: WEB-GUI via web browser
• Key functions: map navigation, real-time health/status monitoring, alarms reporting
• Interfaces: trunking gateway, VoIP gateway, SIP protocol to PA and SCADA systems
