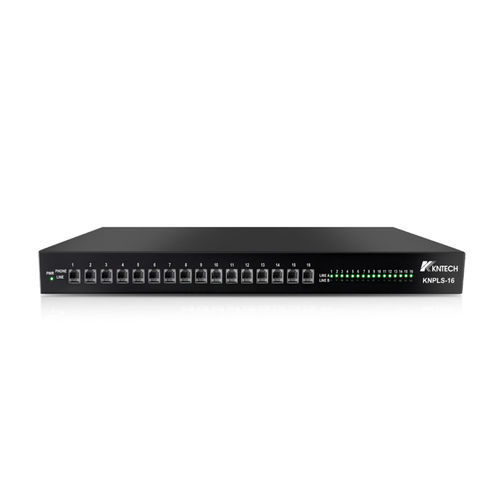

Smarter Ethernet-Switch KNPLS-16

16 PortsInlineBox

Overview
The KNPLS-16 A/B Line Switch Box is an analogue phone line switching unit designed to switch telephone lines between Line A (primary PABX-A) and Line B (backup PABX-B) automatically when a line failure is detected, ensuring continuity of telephone service for end users.

Key Features

• Analogue phone line switch box (Model: KNPLS-16).
• Monitors status of lines from PABX-A (primary/OCC) and PABX-B (hot standby/backup/BCC).
• Automatically switches to the remaining/backup PABX when a failure is detected on the primary line to avoid service interruption.
• Supports dual power and dual network for redundancy.
• Monitors the line connected to the end device (analogue telephone) and reports connection failures to the PABX; operator console GUI will be notified.

Size Display
Product dimensions provided: 437.4mm (L) x 252mm (W) x 44.2mm (H).

Specification
Technical specification images and diagrams are provided on the product page showing internal layout and electrical/connection details.

System
The unit integrates within telephone/PABX systems to provide automatic failover between two PABX systems and includes monitoring and reporting functions to inform operator consoles of end-device connection status.

Application
Intended for telephone systems requiring high availability and redundancy where uninterrupted analogue telephone service is critical; typical use includes installations with primary and backup PABX systems.

Detailed Pictures
Product detail and system diagrams (front/side views, size diagram, system diagram, detailed component views) are provided on the product page.

Caractéristiques / spécifications techniques

• Modèle: KNPLS-16
• Fonction principale: A/B line switching between primary and backup PABX for analogue telephones
• Dimensions: 437.4mm x 252mm x 44.2mm (L x W x H)
• Matériau: Cold-roll steel sheets
• Support: Dual power and dual network
• Monitoring: Monitors PABX-A and PABX-B line status and end-device analogue telephone connection
• Comportement en cas de défaillance: Automatic switch to backup PABX when primary line fails, with reporting to PABX and operator console GUI
• Type de ligne: Analogue phone line switching unit
