Linearer Positioniertisch FSK40IS-DV

XYZmotorisiertmit Linearmotor

Short Description

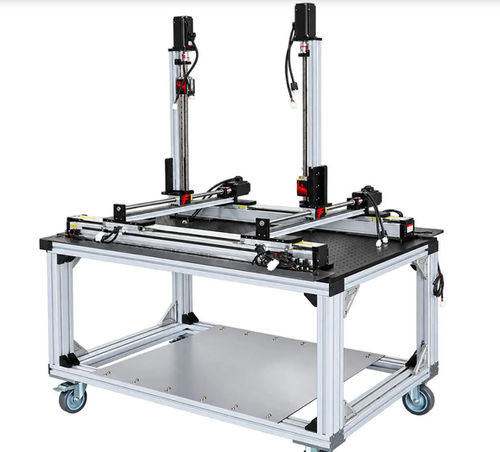

This dual-gantry 3-axis test platform for university labs features X linear motor and Y/Z FsK40 ball screw modules.
Zero-backlash scanning, rigid positioning and modular optical breadboard design support dual-probe comparative tests for material characterization, NDT and field mapping.

Key Features

• Dual-gantry 3-axis test platform suitable for laboratory research and testing.
• X-axis: linear motor module for high-dynamics motion.
• Y/Z axes: FSK40 series ball screw modules for rigid positioning.
• Zero-backlash scanning for precise comparative testing.
• Modular optical breadboard design enabling dual-probe comparative tests (material characterization, NDT, field mapping).

Performance & Configuration
Custom stroke options and repeat positioning performance designed for university lab applications and comparative testing setups.

• Custom stroke (example configuration on page): X-axis 600 mm, Y-axis 500 mm, Z-axis 500 mm.
• Repeat positioning accuracy (example): ±0.02 mm.

Series / Component Information
The product is built around the FSK40 series actuator modules and compatible ball screw options suitable for multi-axis positioning stages.

Caractéristiques / spécifications techniques

• Series: FSK40IS-DV
• Stroke Range: 50mm-1000mm
• Position Accuracy: 0.03mm
• Repeat Positioning Accuracy: ±0.02 mm (example configuration)
• Max Speed: 255 mm/s
• Max Load: 25 kg
• Ball Screw options: G1204 / G1605 / G1610
• Configuration example (custom stroke): X-axis 600 mm / Y-axis 500 mm / Z-axis 500 mm
