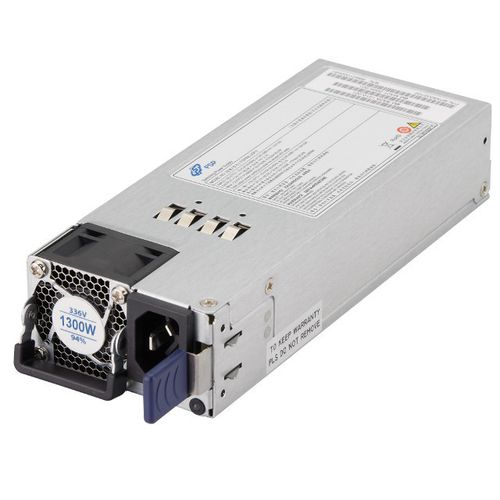

AC/DC-Stromversorgung FSP1300-20FH
mit Überhitzungsschutzmit Kurzschluss-Schutzmit Überstromchutz

AC/DC-Stromversorgung
AC/DC-Stromversorgung
Zu meinen Favoriten hinzufügen
Zum Produktvergleich hinzufügen


Eigenschaften

Typ
AC/DC
Schutz
mit Überhitzungsschutz, mit Kurzschluss-Schutz, mit Überstromchutz
Zertifizierung
CE
Anwendungsbereich
für Rechenzentrum
Weitere Eigenschaften
redundant, mit niedrigem Lärmpegel
Eingangsspannung

Max: 400 V

Min: 90 V

Ausgangsspannung

12 V

Stromstärke

Max: 105,3 A

Min: 0 A

Leistung

1.300 W

Beschreibung

Feature - Low iTHD - Working temperature: 0 to 55°C - Design for 5,000 meters above sea level - Support OCP, OTP and OVP circuit protection - Short circuit protection on all outputs - Resettable power shut down - MTBF: 250K hours of continuous operation at 45°C, 75% output load Introduction FSP1300-20FH is a redundant power supply module base on CRPS 2.0 standard. The power supply comes to offer the total power capacity up to 1300 Watts, and provides PMbus features, which makes it to be able communicate with motherboard. In addition, the power supply is ideally the best choice for new generation datacenter applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.
