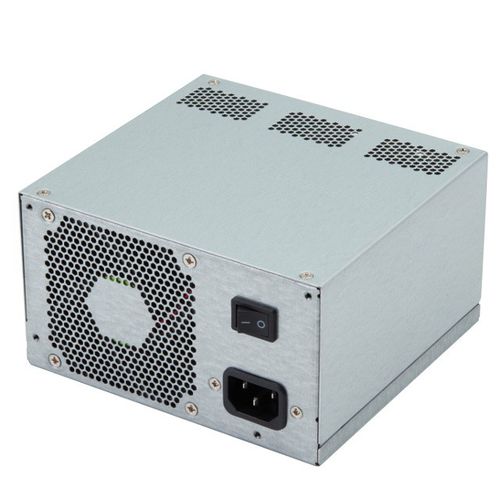

Schaltnetzteil-Stromversorgung FSP500-80AAB
mit Überhitzungsschutzmit Kurzschluss-Schutzmit Überstromchutz

Schaltnetzteil-Stromversorgung
Schaltnetzteil-Stromversorgung
Zu meinen Favoriten hinzufügen
Zum Produktvergleich hinzufügen


Eigenschaften

Technologie
Schaltnetzteil
Schutz
mit Überhitzungsschutz, mit Kurzschluss-Schutz, mit Überstromchutz
Montage
für Leiterplatten
Anwendungsbereich
für Industrie-PC
Weitere Eigenschaften
mit niedrigem Lärmpegel
Eingangsspannung

Min: 90 V

Max: 264 V

Ausgangsspannung

Min: -12 V

Max: 24 V

Stromstärke

Min: 0 A

Max: 18 A

Leistung

500 W

Beschreibung

Feature - Internal 8 cm fan at output side for better acoustic quality - Low Ripple & Noise - Support OCP, OTP and OVP circuit protection - Short circuit protection on all outputs - Resettable power shut down - 100% Hi-pot tested - MTBF:100K hours at 25°C - 100% burn-in under high ambient temperature (50°C) Introduction FSP500-80AAB is an industrial level of switching power supply. The power supply comes to offer the total power capacity up to 500W, and provides one extra 24Vdc output, which makes it to be perfectly used for IPC system with motor or printer environment. In addition, the power supply is ideally the best choice for ATM, POS, KIOSK or any other system with printer applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.
