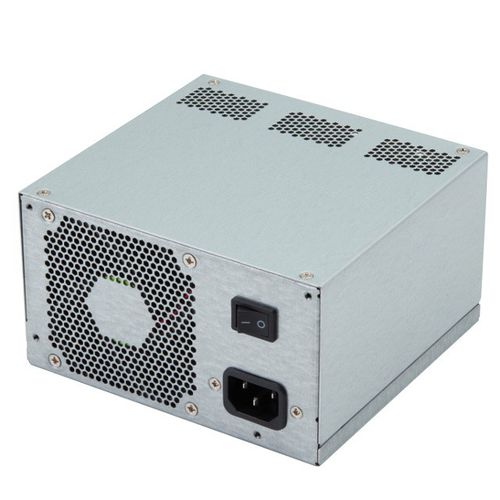

Schaltnetzteil-Stromversorgung FSP400-70AGGBM(M)
mit Überhitzungsschutzmit Kurzschluss-Schutzmit Überstromchutz

Schaltnetzteil-Stromversorgung
Schaltnetzteil-Stromversorgung
Zu meinen Favoriten hinzufügen
Zum Produktvergleich hinzufügen


Eigenschaften

Technologie
Schaltnetzteil
Schutz
mit Überhitzungsschutz, mit Kurzschluss-Schutz, mit Überstromchutz
Anwendungsbereich
für Server, für Workstation, für Telekomausrüstung, für die Automation
Weitere Eigenschaften
mit niedrigem Lärmpegel
Eingangsspannung

Min: 90 V

Max: 264 V

Ausgangsspannung

-12 V, 3,3 V, 5 V, 12 V

Stromstärke

Min: 0 A

Max: 21 A

Leistung

400 W

Beschreibung

Feature - Internal 8 cm fan at output side for better acoustic quality - Low Ripple & Noise - Support OCP, OTP and OVP circuit protection - Short circuit protection on all outputs - Resettable power shut down - 100% Hi-pot tested - MTBF:100K hours at 25°C - 100% burn-in under high ambient temperature (50°C) Introduction FSP400-70AGGBM(M) is an industrial level of switching power supply. The power supply comes to offer easy maintenance and the total power capacity up to 400 Watts, and uses unique active PFC (Power Factor Correction) circuit design with its high-load electrical components, makes it to be perfectly used in an industrial environment. In addition, with its full range of input and output electrical features, the power supply is ideally the best choice for server, workstation, communication or any other automation applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.

Kataloge

IPC
IPC
6 Seiten
