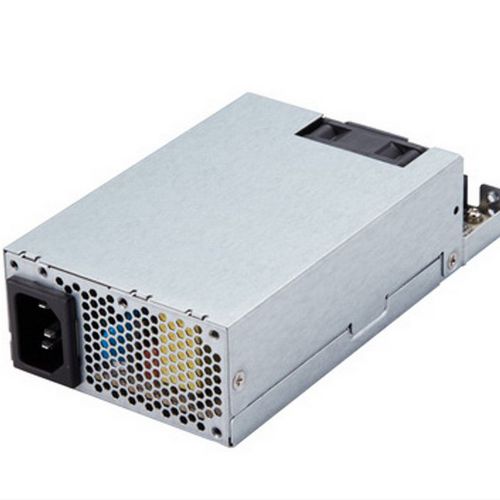

Tischnetzteil FSP350-57FCB
AC/DCSchaltnetzteilmit Überhitzungsschutz

Tischnetzteil - FSP350-57FCB - FSP Technology Inc. - AC/DC / Schaltnetzteil / mit Überhitzungsschutz
Tischnetzteil - FSP350-57FCB - FSP Technology Inc. - AC/DC / Schaltnetzteil / mit Überhitzungsschutz
Zu meinen Favoriten hinzufügen
Zum Produktvergleich hinzufügen

Möchten Sie direkt kaufen?
Besuchen Sie unseren Shop.

Eigenschaften

Format / Montage
Tischgerät
Typ
AC/DC
Technologie
Schaltnetzteil
Schutz
mit Überhitzungsschutz, mit Kurzschluss-Schutz, mit Überstromschutz
Anwendungsbereich
für Server, für Workstation, für Telekomausrüstung, für die Automation, für Industrieanwendungen
Weitere Eigenschaften
mit Leistungsfaktorkorrektur, mit niedrigem Lärmpegel
Eingangsspannung

Max: 264 V

Min: 90 V

Ausgangsspannung

-12 V, 3,3 V, 5 V, 12 V

Stromstärke

Max: 29 A

Min: 0 A

Leistung

350 W

Beschreibung

Feature - Internal 4 cm fan at output side for better acoustic quality - 80 Plus Gold - Low Ripple & Noise - Support OCP, OTP and OVP circuit protection - Short circuit protection on all outputs - Resettable power shut down - 100% Hi-pot tested - MTBF:100K hours at 25℃ - 100% burn-in under high ambient temperature (50℃) Introduction FSP350-57FCB is an industrial level of switching power supply. The power supply comes to offer easy maintenance and the total power capacity up to 350 Watts, and uses unique active PFC (Power Factor Correction) circuit design with its high-load electrical components, makes it to be perfectly used in an industrial environment. In addition, with its full range of input and output electrical features, the power supply is ideally the best choice for server, workstation, communication or any other automation applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.

Kataloge

Für dieses Produkt ist kein Katalog verfügbar.

Alle Kataloge von FSP Technology Inc. anzeigen
