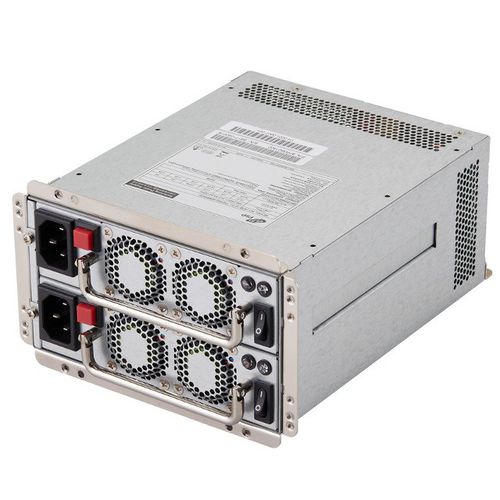

Stromversorgung mit Überhitzungsschutz FSP600-60MRB(S)
mit Kurzschluss-Schutzmit ÜberstromchutzCE

Stromversorgung mit Überhitzungsschutz
Stromversorgung mit Überhitzungsschutz
Zu meinen Favoriten hinzufügen
Zum Produktvergleich hinzufügen


Eigenschaften

Schutz
mit Überhitzungsschutz, mit Kurzschluss-Schutz, mit Überstromchutz
Zertifizierung
CE
Format
2U
Anwendungsbereich
für Server, Büro, für Industrie-PC, für Workstation, für Telekomausrüstung, für die Automation
Weitere Eigenschaften
redundant, mit niedrigem Lärmpegel
Eingangsspannung

Max: 264 V

Min: 90 V

Ausgangsspannung

-12 V, -5 V, 3,3 V, 5 V, 12 V

Stromstärke

Max: 20 A

Min: 0 A

Leistung

Max: 600 W

Min: 350 W

Beschreibung

Feature - 80 Plus Gold - Low Ripple & Noise - Support OCP, OTP and OVP circuit protection - Short circuit protection on all outputs - Resettable power shut down - 100% Hi-pot tested - MTBF:100K hours at 25℃ - 100% burn-in under high ambient temperature (50℃) Introduction FSP600-60MRB(S) is an unique Mini-redundant power supply. It comes to offer the same form factor from 350W to 600W, and the total power capacity up to 600 Watts, plus hot swap features, which makes it to be perfectly fit in a standard 2U server chassis, and used in an industrial or home office environment. In addition, the power supply is ideally the best choice for server, workstation, communication or any other automation applications. This product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.
