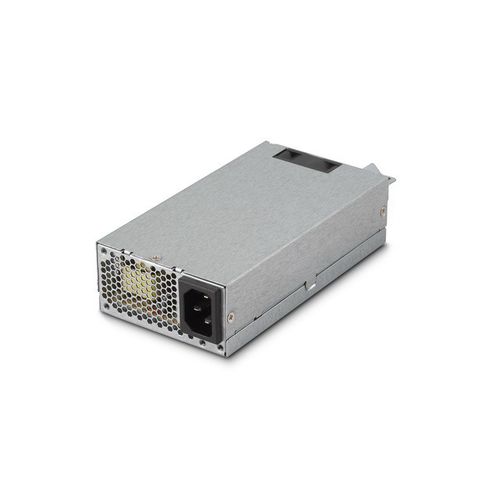

Schaltnetzteil-Stromversorgung FSP300-20FGGBC
mit Kurzschluss-Schutzfür Serverfür Workstation

Schaltnetzteil-Stromversorgung
Schaltnetzteil-Stromversorgung
Zu meinen Favoriten hinzufügen
Zum Produktvergleich hinzufügen


Eigenschaften

Technologie
Schaltnetzteil
Schutz
mit Kurzschluss-Schutz
Anwendungsbereich
für Server, für Workstation, für Telekomausrüstung, für die Automation, für Industrieanwendungen
Weitere Eigenschaften
mit Leistungsfaktorkorrektur PFC, mit niedrigem Lärmpegel
Eingangsspannung

Max: 264 V

Min: 90 V

Ausgangsspannung

5 V, 12 V

Stromstärke

Max: 24 A

Min: 0 A

Leistung

300 W

Beschreibung

Feature - Low Ripple & Noise - Output over voltage protection - Short circuit protection on all outputs - Resettable power shut down - INTERNAL 4 cm fan - 100% burn-in under high ambient temperature(50℃) - Vacuum-impregnated transformer - MTBF:100K hours at 25℃ - 100% Hi-pot tested - Line input fuse protection Introduction FSP300-20FGGBC is an industrial level of switching power supply. The power supply comes to offer the total power capacity up to 300 Watts, and uses unique active PFC (Power Factor Correction) circuit design with its high-load electrical components, makes it to be perfectly used in an industrial environment. In addition, with its full range of input and output electrical features, the power supply is ideally the best choice for server, workstation, communication or any other automation applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.
