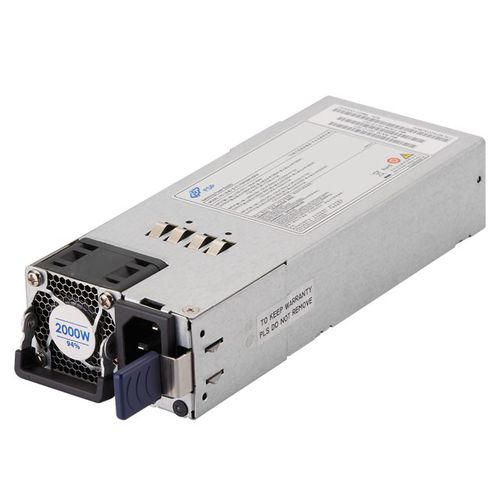

Redundante Stromversorgung FSP2000-20FM
mit Überlastschutzmit Überhitzungsschutzmit Kurzschluss-Schutz

redundante Stromversorgung
redundante Stromversorgung
Zu meinen Favoriten hinzufügen
Zum Produktvergleich hinzufügen


Eigenschaften

Schutz
mit Überlastschutz, mit Überhitzungsschutz, mit Kurzschluss-Schutz
Zertifizierung
TÜV, CE
Format
modular
Anwendungsbereich
für Rechenzentrum, für Server, für Workstation, für Telekomausrüstung, für die Automation
Weitere Eigenschaften
redundant
Eingangsspannung

Min: 90 V

Max: 264 V

Ausgangsspannung

12 V

Stromstärke

Min: 0,5 A

Max: 163,6 A

Leistung

2.000 W

Beschreibung

Feature - Low iTHD - Working temperature: 0 to 55°C - Design for 5,000 meters above sea level - Support OCP, OTP and OVP circuit protection - Short circuit protection on all outputs - Resettable power shut down - MTBF: 250K hours of continuous operation at 45°C, 75% output load Introduction FSP2000-20FM is a redundant power supply module base on CRPS 2.0 standard. The power supply comes to offer the total power capacity up to 2000 Watts, and provides PMbus features, which makes it to be able communicate with motherboard. In addition, the power supply is ideally the best choice for datacenter, workstation, communication or any other automation applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.

Kataloge

Für dieses Produkt ist kein Katalog verfügbar.
