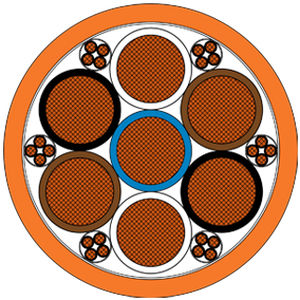

Versorgungs-Stromkabel GP 400 Sy - PVC

koaxialrobustmehrstrangig

Product DetailsGP 400 Sy - PVC: The high-quality 400 Hz cable for fixed ground power supply (FEGP installations) at airports.This symmetrically constructed 400 Hz supply solution was specially developed for fixed ground power supply (Fixed Electrical Ground Power) – for example, between a 400 Hz generator and cable dispenser at the gate. Its robust PVC outer sheath and SABIX® insulation guarantee a long service life and operational safety even under extreme conditions:This cable is characterized by:Low-capacitance insulation, ideal for high frequency with minimal transition resistancesTemperature resistance from approx. –30 °C to +70 °C for fixed installationTest voltage up to 4000 V AC between conductorsCompliance with CE and RoHS standards, plus site safety thanks to halogen-free materialsIn the long term, the GP 400 Sy PVC cable not only reduces maintenance and spare part costs, but also significantly contributes to emission reduction, as APUs or mobile GPUs on the ground are no longer needed. Thanks to its robust design, it is the optimal choice for permanently installed power supply systems in airport operations and sustainably supports modern FEGP infrastructures.Product AdvantagesPrice-optimizedLow-capacitance insulationConstructionConductorCopper, fine-stranded, according to IEC/EN 60228 Class 5Insulation1.0 mm²: SABIX®35.0 mm²: PVCCore identification1.0 mm²: black with number print 1 - 2435.0 mm²: blue, 2x white, 2x brown, 2x blackStranding1.0 mm²: four cores stranded per layer, wrapped with fleeceAll elements are stranded in a specially adapted layer, blue core in the center, overlapped and wrapped with fleeceOuter sheathPVC, orange, similar to RAL 2004Technical DataRated voltage1.0 mm²: Uo/U 115/200 V35.0 mm²: Uo/U max. 0.6/1 kVTest voltageConductor/conductor 4000 V AC 50 HzMinimum bending radiusSingle bend: 3 x dFixed installation: 4 x dFreely movable: 6 x dTemperature rangeNot moved: -30/+70°CMoved: +5/+70°CFlame behaviorAccording to IEC 60332-1-2Maximum short-circuit temperature+160°C (max. 5s)Water resistanceGoodChemical resistanceGood against acids, alkalis, solvents, hydraulic fluids, etc.Oil resistanceGood - according to EN 50290-2-22Ozone and weather resistanceGoodFree from hazardous substancesAccording to RoHS Directive 2011/65/EU and Directive (EU) 2015/863 amending Annex II of Directive 2011/65/EUDimensionsArticle No.No. of cores x cross-sectionOuter ØCu weightCable weight ≈DC resistance at 20°C max.L3400-04027 x 35.0 mm² + 6 x 4 x 1.0 mm²min. 35.5 mm; max. 39.5 mm2582.4 kg/km3164 kg/kmmax. 0.554 Ω/km (35.0mm²); max. 19.5 Ω/km (1.0mm²)Other dimensions and colors on request.CertificationsCERoHSCharacteristics / Technical SpecificationsSymmetrical 400 Hz supply cable for fixed ground power supply at airportsRobust PVC outer sheath, SABIX® insulationLow-capacitance insulation for high-frequency applicationsTemperature range: -30°C to +70°C (fixed), +5°C to +70°C (moved)Test voltage: up to 4000 V ACCompliant with CE and RoHSHalogen-free materialsGood resistance to water, chemicals, oil, ozone, and weatherMaximum short-circuit temperature: +160°C (max. 5s)Article No.: L3400-0402Conductor: Copper, fine-stranded, IEC/EN 60228 Class 5Outer diameter: min. 35.5 mm, max. 39.5 mmCopper weight: 2582.4 kg/kmCable weight: 3164 kg/kmDC resistance: max. 0.554 Ω/km (35.0mm²); max. 19.5 Ω/km (1.0mm²)
