Versorgungs-Stromkabel GP 400 TF DR

koaxialwetterbeständigölbeständig

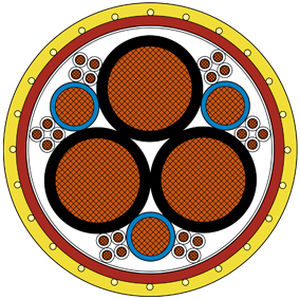

Product for use on motor cable drums, starting from a core diameter of min. 600 mm or in scissor systems.Low-capacitance insulationAbrasion-resistant PUR sheathCold flexibleHalogen-freeOil resistantWeather resistantWith wear indicatorCurrent carrying capacityAccording to LV112-3 and based on an application-specific current-time profile and the following operating conditions:Ambient temperatures up to max. 30°CTwo same-colored phases connected as one conductorOther wires (12mm² blue and 1mm²) not loadedLaid individually on or above surfaces260 A for max. 2 h286 A for max. 10 min.325 A for max. 5 min.364 A for max. 10 s520 A for max. 2 sConstructionConductorCopper, bare, fine stranded according to IEC 60228 class 5InsulationSABIX®Core identification1.0 mm²: white cores with number print 1-2412.0 mm²: 3 x blue70.0 mm²: black cores with number print 1-3Stranding1.0 mm²: cores stranded in fours, wrapped with fleeceAll elements optimally stranded in position, wrapped with fleeceInner sheathPUR, redSupport braidAramidOuter sheathPUR, yellowTechnical DataRated voltageUo/U 115/200 VMax. permissible operating voltageUo/U 0.6/1 kVTest voltageCore/core 4000 V AC 50 HzMinimum bending radiusFixed installation: 4 x dFreely movable: 7.5 x d for repeated windingDeflected over rollers: 10 x dDrum: min. 600 mm inner diameterMinimum breaking force4050 N (15 N/mm²)Halogen-freeAccording to IEC 60754-1Temperature rangeNot moved: -40/+90 °CMoved: -30/+90 °CFlame behaviorSheath material: UL 94 V2Oil resistanceVery good - according to EN 50363-10-2Chemical resistanceGood against acids, alkalis, solvents, hydraulic fluids, etc.Weather resistanceVery good - according to HD 605 (VDE 0276-605)Ozone resistanceVery good - according to EN 50396Saltwater resistanceVery good - according to UL 1309MUD resistanceVery good - according to IEC 60092-360Hydrolysis and microbe resistanceVery good - according to EN 50363-10-2Mechanical strengthPUR outer sheath properties:- Very high tensile strength- Very high tear and further tear resistance- Very high abrasion resistance- Very high impact strength- Very high shear strengthAbrasion resistanceAccording to UL 2556-2021 and JIS C3005Fuel resistanceGasoline, diesel, and kerosene (Jet A-1)Free from hazardous substancesAccording to RoHS directive of the European UnionDimensionsArticle No.Number of cores x cross-sectionOuter ØCu weightCable weight ≈DC resistance max. Ω/kmL340002033 x (70.0 mm² + 3 x 12.0 mm² + 6 x 4 x 1.0 mm²)ca. 39.0 mm - max. 40.0 mm2592 kg/km3112 kg/km70.0 mm²: 0.277 Ω/km | 12.0 mm²: 1.63 Ω/km | 1.0 mm²: 19.5 Ω/kmL340002043 x (70.0 mm² + 3 x 16.0 mm² + 6 x 4 x 1.0 mm²)ca. 39.8 mm - max. 40.0 mm2707 kg/km3221 kg/km70.0 mm²: 0.277 Ω/km | 12.0 mm²: 1.21 Ω/km | 1.0 mm²: 19.5 Ω/kmFurther dimensions and colors on request.Conductor: Copper, bare, fine stranded according to IEC 60228 class 5Insulation: SABIX®Core identification: 1.0 mm²: white cores with number print 1-24; 12.0 mm²: 3 x blue; 70.0 mm²: black cores with number print 1-3Stranding: 1.0 mm²: cores stranded in fours, wrapped with fleece; all elements optimally stranded in position, wrapped with fleeceInner sheath: PUR, redSupport braid: AramidOuter sheath: PUR, yellowRated voltage: Uo/U 115/200 VMax. permissible operating voltage: Uo/U 0.6/1 kVTest voltage: Core/core 4000 V AC 50 HzMinimum bending radius: Fixed installation: 4 x d; Freely movable: 7.5 x d for repeated winding; Deflected over rollers: 10 x d; Drum: min. 600 mm inner diameterMinimum breaking force: 4050 N (15 N/mm²)Halogen-free: According to IEC 60754-1Temperature range: Not moved: -40/+90 °C; Moved: -30/+90 °CFlame behavior: Sheath material: UL 94 V2Oil resistance: Very good - according to EN 50363-10-2Chemical resistance: Good against acids, alkalis, solvents, hydraulic fluids, etc.Weather resistance: Very good - according to HD 605 (VDE 0276-605)Ozone resistance: Very good - according to EN 50396Saltwater resistance: Very good - according to UL 1309MUD resistance: Very good - according to IEC 60092-360Hydrolysis and microbe resistance: Very good - according to EN 50363-10-2Mechanical strength: PUR outer sheath properties: Very high tensile strength, tear and further tear resistance, abrasion resistance, impact strength, shear strengthAbrasion resistance: According to UL 2556-2021 and JIS C3005Fuel resistance: Gasoline, diesel, and kerosene (Jet A-1)Free from hazardous substances: According to RoHS directive of the European Union
