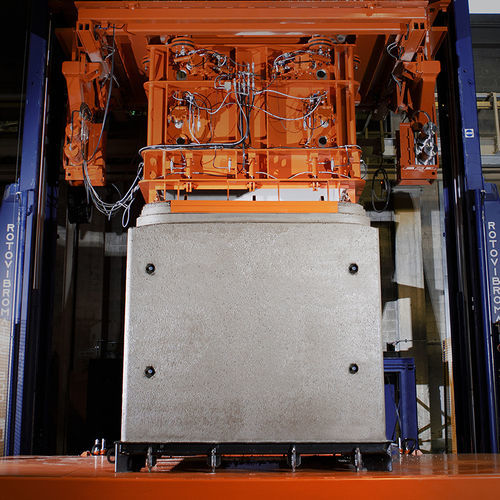

Produktionsanlage für Betonprodukte Rotovibromatic

automatischfür Baustellen

Fully automatic machine for the production by vibration compaction, with immediate demoulding and tilting of precast elements with a height from 1000 mm to 3000 mm, particularly suitable for large parts.PresentationFully automatic machine for the production by vibration compaction, both for immediate demoulding and for demoulding by tilting for a variety of concrete products. The Rotovibromatic is particularly suitable for the automatic production of large precast elements with and without monolithic base, also with special geometries. Depending on the different models, the machine can produce precast elements with a diameter of 3000 mm or up to 3000 mm x 3000 mm and a variable height from 250 mm to 3000 mm in single production (multiple production is also possible on request). The type of vibration can be selected as required (vibration column with hydraulic form clamping/release at each cycle, vibrating table with hydraulic form clamping frame or standard internal vibrator).Technical FeaturesThe Rotovibromatic is equipped with a pressing system for the base of the precast element, ensuring better compaction and tightness.The machine can be equipped with a hydraulic quick-change system for the moulds, allowing a daily quick mould change in less than 1.5 hours (no need to adjust cores, outer moulds, and pressing device after production change).Concrete feeding is fully automatic: the conveyor belt is combined with a special planetary distributor with 4 rotating elements, distributing the concrete in the shortest time even to the most remote areas. This solution is particularly effective for the production of box-shaped precast elements and rectangular tanks as well as large products.Other features make the Rotovibromatic an extremely functional system: both mechanical and electronic vibration control via inverter, inspectable concrete storage silo for cleaning, automatic ejection of precast elements at the end of the cycle by motorized trolley with the possibility of subsequent manual handling and storage.The system can be integrated with automatic feeding of base pallets (flat bottom sockets) for production in tilting mode or standard bottom sockets for production with immediate demoulding from the front, and/or with cleaning and oiling of the bottom sockets, fitting of seals, and automatic overhead conveying. These options allow further acceleration of the production cycle while reducing the required personnel.General machine management and control is via PC with Vicom system, with an overview of machine status and faults, complete with remote maintenance modules, with the possibility of remote production control (Industry 4.0).With its performance, the Rotovibromatic is a unique machine, the result of research, development, and technology.Products that can be manufactured:Containers (round, box-shaped or oval), with or without sedimentation chambers, for oil separation, water intake, clarificationCircular pipesCircular pipes with laying surfaceUnreinforced pipesPipes with rigid reinforcementFiber-reinforced pipesDrainage pipesJoint pipes spigot-to-spigotPipes in frame shape or with egg profileJacking pipesShaft basesShaft rings and shaft necksMonolithic shaftsSlabs and flat coversCompensation elements for shafts, pipes with branches, shafts for road drains, drainage channelsSpecial constructions in general, specially manufactured according to customer requirements, with any type of connectionAdvantagesHigh production: Rotovibromatic enables a fourfold increase in productivity of exceptionally large concrete precast elementsFlexibility (a wide range of products can be manufactured)Drastic reduction of working times with lower personnel requirementsHigh product quality, ensured by automatic electronic regulation of vibration (with internal vibrator) and concrete feedingExtremely fast mould change: with the patented system from Colle S.p.A., only 15 minutes are needed (the time saving allows the mould to be changed for a possible second shift on the same day), without the need to adjust the mould after the changeComplete control of the machine via PC with Vicom system, with the possibility of remote management and control of production (Industry 4.0), with any type of deviceGuaranteed operator support through real-time remote assistanceTechnical Specifications / FeaturesAutomatic vibration compactionImmediate and tilting demouldingProduction height: 1000 mm to 3000 mmProduction diameter: up to 3000 mm or 3000 mm x 3000 mmVariable height: 250 mm to 3000 mmHydraulic quick-change system for mouldsAutomatic concrete feeding with planetary distributorMechanical and electronic vibration control via inverterInspectable concrete storage siloAutomatic ejection of precast elementsPC-based control with Vicom systemRemote maintenance and production control (Industry 4.0)
