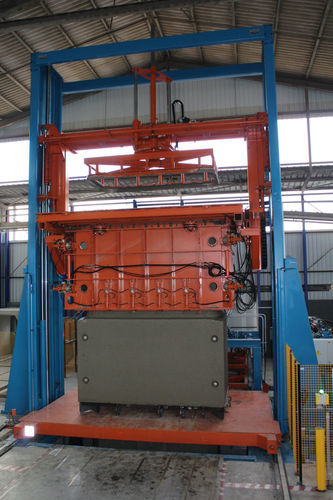

Produktionsanlage für Betonprodukte Vibromax

automatischfür Baustellen

Fully automatic machine for the production by means of vibration compaction, with immediate demolding of precast elements with a height from 1000 mm to 3000 mm, especially suitable for large parts.Presentation:Fully automatic machine for the production by means of vibration compaction, with immediate demolding of a wide variety of concrete products. Particularly suitable for the automated production of large precast elements.Depending on the different models, the machine can produce precast elements with a diameter from 300 mm up to a diameter of 3000 mm (box shapes up to 3000 mm x 3000 mm) and a variable height from 250 mm to 3000 mm in single production (multiple production is also possible on request).Technical Features:The machine can be equipped with the easy and quick-to-use hydraulic quick-change system for the molds, which allows a daily quick mold change in less than 1.5 hours (it is also no longer necessary to adjust cores, outer molds, and pressing devices after the production change).The concrete supply is fully automatic: the conveyor belt is combined with a special planetary distributor with 4 rotating elements, which distributes the concrete in the shortest possible time even to the most remote places; this solution is particularly effective for the production of box-shaped products and large precast elements.Other features make Vibromax an extremely functional plant: mechanical and electronic vibration adjustment via inverter, inspectable loading bucket for cleaning operations, automatic ejection of products at the end of the cycle via the motorized trolley, with possible subsequent handling and storage.The system can be supplemented with automatic feeding of the bottom sockets (which takes place at the front) and/or with cleaning and oiling of the sockets, pulling on the seals, and automatic overhead conveying. These options allow further acceleration of the production cycle while reducing the required personnel.General machine management and control is carried out via a PC with Vicom system, with an overview of the machine status and faults, complete with remote maintenance modules, with the possibility of remote control of production (Industry 4.0).Possible Products:Circular pipesCircular pipes with laying surfaceUnreinforced pipesPipes with rigid reinforcementFiber-reinforced pipesDrainage pipesJacking pipesSocket pipes end-to-endPipes in frame shape or with egg profileManhole basesManhole rings and manhole necksMonolithic manholesFlat coversAdjustment elements for manholesPipes with branchesManholes for road drainsDrainage channelsSpecial productions in general, specially manufactured according to customer requirements, with any type of connectionAdvantages:High productionFlexibility (a wide range of products can be manufactured; the machine is ideal for the automatic production of large precast elements)Lower personnel requirementsHigh product quality, ensured by the automatic electronic regulation of vibration (with internal vibrator) and concrete supplyExtremely fast mold change (the time saved allows the mold to be changed for a possible second shift on the same day), without the need to adjust the mold after the changeComplete control of the machine via PC with Vicom system, with the possibility of remote control of production (Industry 4.0)Technical Specifications / Features:Production method: Vibration compactionImmediate demoldingProduct height: 1000 mm to 3000 mmProduct diameter: 300 mm to 3000 mm (box shapes up to 3000 mm x 3000 mm)Variable height: 250 mm to 3000 mmHydraulic quick-change system for moldsAutomatic concrete supply with planetary distributorMechanical and electronic vibration adjustmentAutomatic ejection and handlingPC-based control with Vicom system and remote maintenanceOptional: automatic feeding, cleaning, oiling, and overhead conveying
