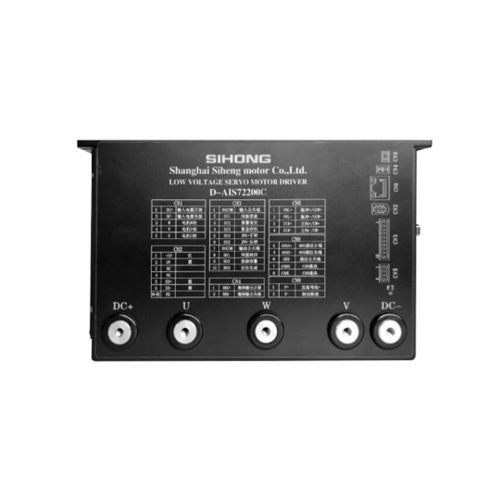

DC-Servoregler D – AIS72200A

ModbusRS-485Steuer

Product DetailsIt features strong stability, high-precision positioning, high motor response, low noise, low heat generation, fine-structured design, strong overload capacity, practical and rich functions, and simple and convenient application. It has protections against over-voltage, under-voltage, overspeed, overcurrent, overload, encoder abnormalities, position deviation, stall, parameter abnormalities, etc.Technical SpecificationsDrive ModelVoltage Range (V)Rated Current (A)D – AIS24008A24 – 368D – AIS48015A24 – 4815D – AIS48025A24 – 6025D – AIS48050A24 – 7250D – AIS48100A36 – 72100D – AIS72200A48 – 96200D – AIS72300A48 – 96300Control Method① Position Control ② Speed Control ③ Torque Control ④ Communication ControlControl CharacteristicsSpeed Frequency Response: ≥200Hz, Received Pulse Frequency ≤200kHz, Speed Fluctuation Rate: < ±0.03 (Load 0 – 100%): < ±0.02×(0.9 – 1.1) Power Supply VoltageMonitoring FunctionCurrent Speed, DI Input, DO Output, Current Position, Command Input Pulse Accumulation, Average Load Rate, Position Deviation Count, Motor Phase Current, Bus Voltage Value, Module Temperature, Alarm Record, Command Pulse Frequency Corresponding Speed, Operating Status, etc.Home-return Function13 Kinds of Autonomous (Search) Home-return Modes, and Home-point Offset FunctionRs485 FunctionFollows Standard Modbus RTU Protocol, One-to-Two Two-way Communication Interface for Easy Networking and Parallel ConnectionDriver Installation DimensionsProduct Model: D – AIS72200ARated Voltage: 48 – 96VRated Current: 200ASplit-type Drive Hardware InterfaceApplicable drive models: D – AISXX005A / D – AISXX0015A / D – AISXX0025A / D – AISXX0040A / D – AISXX00100A / D – AISXX00200ASplit-type AI MOTOR Drive Interface DiagramSerial NumberSymbolFunctionRemarksCn11UMotor U-phase2VMotor V-phase3WMotor W-phase4DC–Negative pole of input power supply. The external input DC power supply must distinguish positive and negative poles; voltage range: DC48V5DC+Positive pole of input power supplyCn215V+Motor encoder power interface2GNDPower interface3NCEmpty terminal (No function)4NCEmpty terminal (No function)5SD+Motor encoder communication interface6SD–...(For brevity, only a portion of the extensive interface tables is shown. The full product page contains detailed pinouts and wiring diagrams for all connectors, as well as additional technical notes and diagrams.)Selection Specification Reference Table for Discharging Braking Resistor of Split-type Drive Cn9 InterfaceSplit-type Drive ModelRated Output CurrentRequirement for Resistance Value of External Braking ResistorRequirement for Power of External Braking ResistorD – AISXX008A8A10 – 30 ohms rangeGreater than 100WD – AISXX0015A15A10 – 30 ohms rangeGreater than 100WD – AISXX0025A25A10 – 30 ohms rangeGreater than 100WD – AISXX0050A50A5 – 15 ohms rangeGreater than 200WD – AISXX00100A100A5 – 15 ohms rangeGreater than 200WD – AISXX00200A200A5 – 15 ohms rangeGreater than 200WStandard Wiring DiagramIncludes detailed diagrams for input power supply wiring, high-speed pulse signal wiring, DI and DO wiring, RS485 communication wiring, and host computer debugging connection.Key FeaturesStrong stabilityHigh-precision positioningHigh motor responseLow noise and heat generationFine-structured designStrong overload capacityRich and practical functionsSimple and convenient applicationComprehensive protection featuresTechnical Specifications (Summary)Model: D – AIS72200AVoltage Range: 48 – 96VRated Current: 200AControl Methods: Position, Speed, Torque, CommunicationSpeed Frequency Response: ≥200HzPulse Frequency: ≤200kHzRS485 Modbus RTU support
