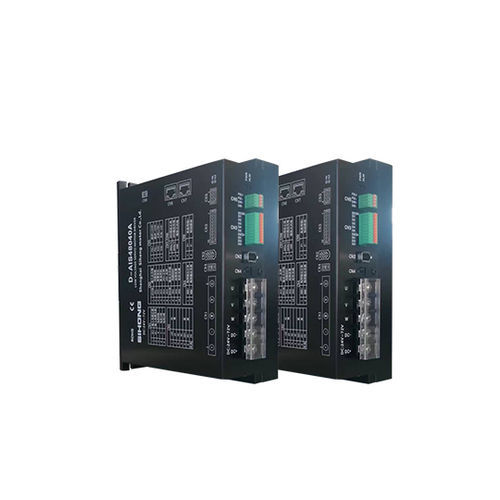

DC-Servoregler D – AIS48050A

RS-485Modbus RTU24 - 72V

Product DetailsIt features strong stability, high-precision positioning, high motor response, low noise, low heat generation, fine-structured design, strong overload capacity, practical and rich functions, and simple and convenient application. It has protections against over-voltage, under-voltage, overspeed, overcurrent, overload, encoder abnormalities, position deviation, stall, parameter abnormalities, etc.Technical SpecificationsDrive ModelVoltage Range (V)Rated Current (A)D – AIS24008A24 – 368D – AIS48015A24 – 4815D – AIS48025A24 – 6025D – AIS48050A24 – 7250D – AIS48100A36 – 72100D – AIS72200A48 – 96200D – AIS72300A48 – 96300Control Method① Position Control ② Speed Control ③ Torque Control ④ Communication ControlControl CharacteristicsSpeed Frequency Response: ≥200Hz, Received Pulse Frequency ≤200kHz, Speed Fluctuation Rate: < ±0.03 (Load 0 – 100%): < ±0.02×(0.9 – 1.1) Power Supply VoltageMonitoring FunctionCurrent Speed, DI Input, DO Output, Current Position, Command Input Pulse Accumulation, Average Load Rate, Position Deviation Count, Motor Phase Current, Bus Voltage Value, Module Temperature, Alarm Record, Command Pulse Frequency Corresponding Speed, Operating Status, etc.Home-return Function13 Kinds of Autonomous (Search) Home-return Modes, and Home-point Offset FunctionRs485 FunctionFollows Standard Modbus RTU Protocol, One-to-Two Two-way Communication Interface for Easy Networking and Parallel ConnectionDriver Installation DimensionsProduct Model: D – AIS48050ARated Voltage: 24 – 72VRated Current: 50ASplit-type Drive Hardware InterfaceApplicable drive models: D – AISXX005A / D – AISXX0015A / D – AISXX0025A / D – AISXX0040A / D – AISXX00100A / D – AISXX00200ASelection Specification Reference Table for Discharging Braking Resistor of Split-type Drive Cn9 InterfaceSplit-type Drive ModelRated Output CurrentRequirement for Resistance Value of External Braking ResistorRequirement for Power of External Braking ResistorD – AISXX008A8A10 – 30 ohms rangeGreater than 100WD – AISXX0015A15A10 – 30 ohms rangeGreater than 100WD – AISXX0025A25A10 – 30 ohms rangeGreater than 100WD – AISXX0050A50A5 – 15 ohms rangeGreater than 200WD – AISXX00100A100A5 – 15 ohms rangeGreater than 200WD – AISXX00200A200A5 – 15 ohms rangeGreater than 200WStandard Wiring DiagramInput Power Supply Wiring: The input power supply terminals must strictly distinguish positive and negative poles. The input power supply voltage range may vary for different models. Please refer to the hardware interface reference wiring for the corresponding model in the previous chapter.This product has a certain overload capacity. When selecting an external switching power supply, the output capacity should be 1.5 times the rated current of this product. The rated current of the product is indicated on the nameplate.High-speed Pulse Signal WiringThis product supports pulse input with a wide voltage range of 5 – 24V, and the maximum received pulse frequency is 200KHZ. The upper-level pulse device should pay attention to limiting the frequency to within 200K to prevent the driver from easily losing pulses and causing positioning abnormalities.It is recommended to use double-shielded wires for pulse control lines and avoid laying them in the same circuit as strong current interference sources, which can effectively shield external strong magnetic interference.DI and DO WiringThe control voltage of the input terminals is valid at DC12 – 24V.Each DI can be freely assigned different functions (refer to the DIDO parameter section), but the same function cannot be assigned to multiple DIs.For external switch signal control with DC– input, select the NPN-type connection method, where low-level is effective; for external switch signal control with DC+ input, select the PNP-type connection method, where high-level is effective.The maximum driving capacity of the output terminals is <300ma current. If a large load needs to be driven, a relay should be used for conversion.Each DO can be freely assigned different functions (refer to the DIDO parameter section).RS485 Communication WiringFor multi-slave connection, if the communication signal noise is large, it is recommended to add a 120-ohm terminal resistor to the last slave to ensure communication quality.For communication-related content, refer to section 4.5 RS485-related parameters.Host Computer Debugging ConnectionUsually, a computer does not have a direct 485 interface, and a USB-to-485 converter is required to connect to the slave motor drive.The host computer debugging software for PC can be downloaded from the company's official website, which is convenient for users to debug.Key Features / Technical SpecificationsModel: D – AIS48050AVoltage Range: 24 – 72VRated Current: 50AControl Methods: Position, Speed, Torque, CommunicationProtections: Over-voltage, Under-voltage, Overspeed, Overcurrent, Overload, Encoder Abnormalities, Position Deviation, Stall, Parameter AbnormalitiesRS485 Modbus RTU CommunicationMultiple monitoring and feedback functionsHigh-speed pulse input up to 200kHzFlexible DI/DO assignment
