Planetengetriebe WPF60 series

rechtwinkligmit HohlwellePräzision

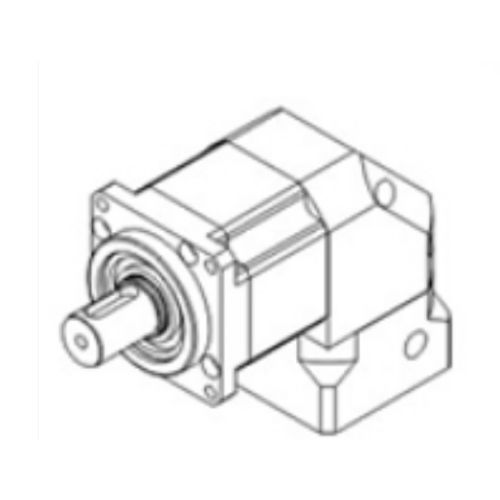

The output planetary carrier of the reducer adopts an integrated nut to eliminate axial clearance design. The front and rear bearings are distributed in a large span within the integral box body, forming a super-strong integrated structure to ensure high torsional rigidity, super-strong radial load-carrying capacity and excellent axial load-carrying capacity. The one-time processing and completion process is adopted to ensure extremely high coaxiality.Outline Dimension Drawing of ReducerMain Technical ParametersLevelFirst stageSecond stageThird stageReduction Ratio3/4/5/7/1012/16/20/25/28/35/40/50/7080/100/125/140/175/200/250/700/1000Body Length150.5166.5182.5Maximum Radial Force400N500N800NMaximum Axial Force300N390N700NFull load Efficiency≥94%≥92%≥88%Weight2.0kg2.3kg2.6kgService Life≥20000h≥20000h≥20000hRated Input Speed3000rpm3000rpm3000rpmMaximum Input Speed8000rpm8000rpm8000rpmMotor Power400W400W400WGear Precision Grade6 GB/T10095-20086 GB/T10095-20086 GB/T10095-2008Operating Temperature-25° ~ +90°-25° ~ +90°-25° ~ +90°Protection GradeIP65IP65IP65Lubrication MethodLong-acting LubricationLong-acting LubricationLong-acting LubricationInstallation MethodFlangeFlangeFlangeCategory: GearboxTag: AC servo motor and driverTechnical Specifications:Reduction Ratio: 3/4/5/7/10 (1st stage), 12/16/20/25/28/35/40/50/70 (2nd stage), 80/100/125/140/175/200/250/700/1000 (3rd stage)Body Length: 150.5mm (1st), 166.5mm (2nd), 182.5mm (3rd)Maximum Radial Force: 400N (1st), 500N (2nd), 800N (3rd)Maximum Axial Force: 300N (1st), 390N (2nd), 700N (3rd)Full Load Efficiency: ≥94% (1st), ≥92% (2nd), ≥88% (3rd)Weight: 2.0kg (1st), 2.3kg (2nd), 2.6kg (3rd)Service Life: ≥20000hRated Input Speed: 3000rpmMaximum Input Speed: 8000rpmMotor Power: 400WGear Precision Grade: 6 GB/T10095-2008Operating Temperature: -25° ~ +90°Protection Grade: IP65Lubrication Method: Long-acting LubricationInstallation Method: Flange
