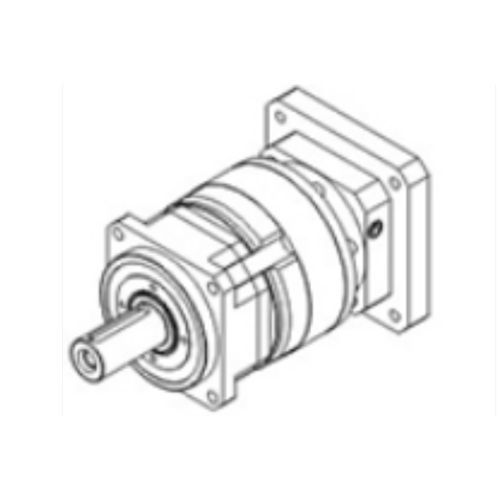

Planetengetriebe P142 series

koaxialmit HohlwelleFlansch

The output planetary carrier of the reducer adopts an integrated nut to eliminate axial clearance design. The front and rear bearings are distributed in a large span within the integral box body, forming a super-strong integrated structure to ensure high torsional rigidity, super-strong radial load-carrying capacity and excellent axial load-carrying capacity. The one-time processing and completion process is adopted to ensure extremely high coaxiality.Outline Dimension Drawing of ReducerMain Technical Parameters:LevelFirst stageSecond stageReduction Ratio3/4/5/812/15/16/20/25/32/40/64Body Length290334.5Maximum Radial Force10000N12200NMaximum Axial Force16000N21000NFull-load Efficiency≥96%≥94%Weight16.5kg22.5kgService Life ≥20000hRated Input Speed2500rpm2500rpmMaximum Input Speed4500rpm4500rpmMotor Power3000W3000WGear Precision Grade6 GB/T10095 – 20086 GB/T10095 – 2008Operating Temperature–25° ~ +90°–25° ~ +90°Protection GradeIP65IP65Lubrication MethodLong-acting LubricationLong-acting LubricationInstallation MethodFlangeFlangeCategory: GearboxTag: AC Servo Motor and DriverTechnical Specifications:Reduction Ratio: 3/4/5/8 (First stage), 12/15/16/20/25/32/40/64 (Second stage)Body Length: 290 mm (First stage), 334.5 mm (Second stage)Maximum Radial Force: 10000N (First stage), 12200N (Second stage)Maximum Axial Force: 16000N (First stage), 21000N (Second stage)Full-load Efficiency: ≥96% (First stage), ≥94% (Second stage)Weight: 16.5kg (First stage), 22.5kg (Second stage)Service Life: ≥20000h (Second stage)Rated Input Speed: 2500rpmMaximum Input Speed: 4500rpmMotor Power: 3000WGear Precision Grade: 6 GB/T10095 – 2008Operating Temperature: –25° ~ +90°Protection Grade: IP65Lubrication Method: Long-acting LubricationInstallation Method: Flange
