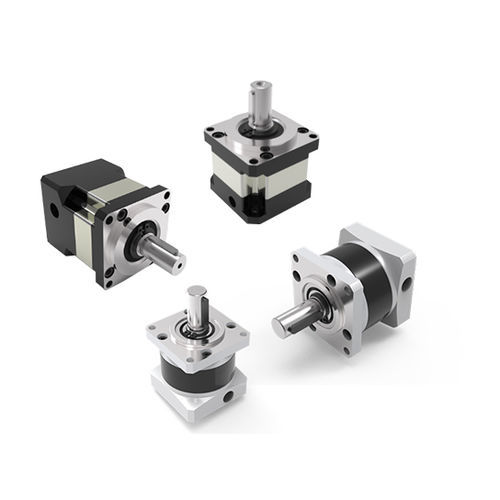

Planetengetriebe PF160 series

koaxialmit Hohlwelle

The output planetary carrier of the reducer adopts an integrated nut to eliminate axial clearance design. The front and rear bearings are distributed in a large span within the integral box body, forming a super-strong integrated structure to ensure high torsional rigidity, super-strong radial load-carrying capacity and excellent axial load-carrying capacity. The one-time processing and completion process is adopted to ensure extremely high coaxiality.Outline Dimension Drawing of ReducerMain Technical ParametersLevelFirst stageSecond stageThird stageReduction Ratio3/4/5/812/15/16/20/25/32/40/6480/100/120/125/160/200/256/512Body Length290334.5379Maximum Radial Force10000N12200N20000NMaximum Axial Force16000N21000N36000NFull load Efficiency≥96%≥94%≥90%Weight17.5kg23.5kg27.5kgService Life≥20000h≥20000h≥20000hRated Input Speed2500rpm2500rpm2000rpmMaximum Input Speed4500rpm4500rpm5000rpmMotor Power3000W3000W3000WGear Precision Grade6 GB/T10095-20086 GB/T10095-20086 GB/T10095-2008Operating Temperature-25° ~ +90°-25° ~ +90°-25° ~ +90°Protection GradeIP65IP65IP65Lubrication MethodLong-acting LubricationLong-acting LubricationLong-acting LubricationInstallation MethodFlangeFlangeFlangeCategory: GearboxTag: AC Servo Motor and DriverTechnical Specifications / FeaturesIntegrated nut to eliminate axial clearanceLarge span front and rear bearings for high rigidityHigh torsional rigidity and load-carrying capacityHigh coaxiality due to one-time processingMultiple reduction ratios availableProtection grade: IP65Service life: ≥20000hOperating temperature: -25° to +90°Long-acting lubricationFlange installation
