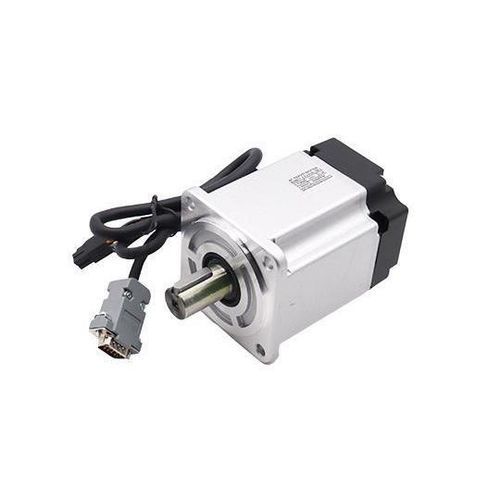

AC-Servomotor 80BST-C0 series

220 VPermanentmagnetIP65

Features: 17-bit and 23-bit absolute photoelectric encoder, with high-end and high responsiveness. Speed: Good high-speed performance. Generally, the rated speed can reach 3000 rpm, and the maximum speed can reach 6000 rpm. Adaptability: Strong overload resistance, can withstand a load equivalent to three times the rated torque. Especially suitable for situations with sudden load fluctuations that require a quick start. Stability: Smooth operation at low speed. No step operation phenomenon occurs at low speed, unlike stepper motors. Suitable for occasions with fast response requirements. Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within a few tens of milliseconds. Comfort: Heat and noise are significantly reduced.ModelVoltage (VAC)Current (A)Torque (Nm)BrakeWeight (kg)Body Length (mm)808 ST-C02430-2B12204.52.39Without brake102808 ST-C02430-2B1-Z2204.52.39With brake128808 ST-C03230-2B12205.93.2Without brake113808 ST-C03230-2B1-Z2205.93.2With brake140Motor SpecificationsModel80BST-C02430-2B180BST-C02430-2B1-Z80BST-C03230-2B180BST-C03230-2B1-ZRated Voltage (V)220220220220Rated Power (W)75075010001000Rated Current (A)4.54.55.95.9Rated Torque (N·m)2.392.393.23.2Rated Speed (rpm)3000±10%3000±10%3000±10%3000±10%Max Speed (rpm)5000±10%5000±10%5000±10%5000±10%Back-EMF Constant (V/Krpm)34.334.33636Line Resistance (Ohm)1.451.450.920.92Line Inductance (mH)4.954.953.43.4Rotor Inertia (10⁻¹kg·m²)1.481.481.931.93Torque Constant (Nm/A)0.530.530.540.54Electrical Time Constant (ms)3.413.413.73.7BrakeWithout brakeWith brakeWithout brakeWith brakeBody Length (L mm)102128113140Rotor Pole Pairs5PInsulation ClassClass FProtection ClassIP65––IP517-bit/23-bit absolute photoelectric encoderHigh-end, high responsivenessRated speed: 3000 rpm, max speed: 6000 rpmStrong overload resistance (up to 3x rated torque)Smooth low-speed operation, no stepper-motor-like steppingShort dynamic response time (tens of ms)Reduced heat and noiseRated voltage: 220VRated power: 750W/1000WRated current: 4.5A/5.9ARated torque: 2.39Nm/3.2NmProtection class: IP65Insulation class: FRotor pole pairs: 5
