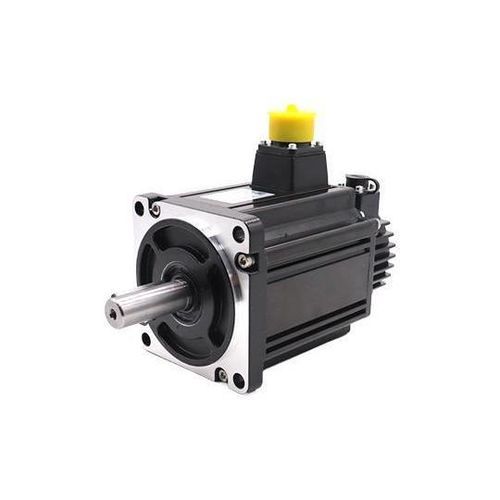

AC-Servomotor 130B series

220 VIP655-polig

Features: 17-bit and 23-bit absolute photoelectric encoder, with high-end and high responsiveness. Speed: Good high-speed performance. Generally, the rated speed can reach 3000 rpm, and the maximum speed can reach 6000 rpm. Adaptability: Strong overload resistance, can withstand a load equivalent to three times the rated torque. Especially suitable for situations with sudden load changes that require rapid start. Stability: Smooth operation at low speed. No step operation phenomenon occurs at low speed, unlike stepper motors. Suitable for occasions with fast response requirements. Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within a few tens of milliseconds. Comfort: Heat and noise are significantly reduced.Product Specifications:ModelVoltage (VAC)Current (A)Torque (Nm)Weight (kg)Body Length (mm)ZM1308ST-C06415-2B12207.06.4Without brake141ZM1308ST-C08415-2B122098.4Without brake157ZM1308ST-C11515-2B12201211.5Without brake175ZM1308ST-C14615-2B12201514.6Without brake196Motor Specifications:Motor ModelZM130BST-C06415-2B1ZM130BST-C08415-2B1ZM130BST-C11515-2B1ZM130BST-C14615-2B1Rated Voltage (V)220220220220Rated Power (W)1000130018002300Rated Current (A)7.091215Rated Torque (Nm)6.48.411.514.6Rated Speed (rpm)1500150015001500Moment of Inertia (10⁻³kg·m²)1.312.01±10%2.57±10%3.32±10%Back EMF Constant (V/Krpm)53.557±10%58.5±10%58.5±10%Line Resistance (Ohm)0.720.61±10%0.34±10%0.25±10%Line Inductance (mH)6.374.72±10%3.03±10%2.35±10%Torque Constant (Nm/A)0.910.93±10%0.95±10%0.97±10%Electrical Time Constant (ms)8.857.73±10%8.9±10%9.4±10%Body Length (mm)141157175140Rotor Pole Pairs 5 p Motor Insulation Class Class F Protection Class IP65Outline Drawing:Technical Specifications / Features:17-bit and 23-bit absolute photoelectric encoderHigh-end and high responsivenessRated speed: 3000 rpm, max speed: 6000 rpmStrong overload resistance (up to 3x rated torque)Smooth operation at low speed, no step operation phenomenonShort dynamic response time (tens of milliseconds)Reduced heat and noiseRated voltage: 220VRated power: 1000W to 2300W (depending on model)Protection class: IP65Insulation class: FRotor pole pairs: 5
