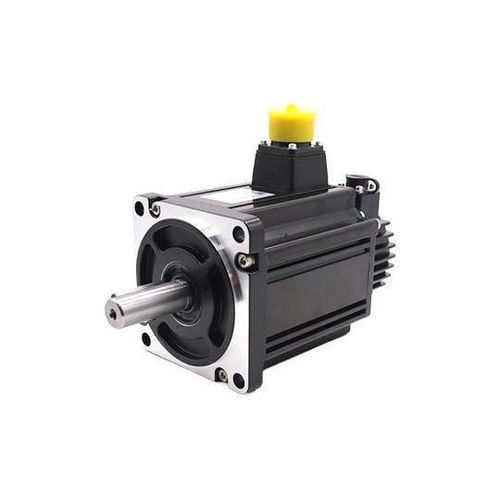

Bürstenloser Servomotor 130B series

AC380 VIP65

Features:17-bit/23-bit absolute photoelectric encoder, with high-end and high responsiveness.Speed: Good high-speed performance. Generally, the rated speed can reach 3000 rpm, and the maximum speed can reach 6000 rpm.Adaptability: Strong overload resistance, can withstand a load equivalent to three times the rated torque. Especially suitable for situations with sudden load changes requiring rapid start.Stability: Smooth operation at low speed. No step operation phenomenon occurs at low speed, unlike stepper motors. Suitable for occasions with fast response requirements.Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within a few tens of milliseconds.Comfort: Heat and noise are significantly reduced.Product Specifications:ModelVoltage (VAC)Current (A)Torque (Nm)Weight (kg)Body Length (mm)130BS0850C3-Standard3803.1––130130BS0850C3-With Brake Z3803.1––155.5130BS01300C3-Standard3805.1––146130BS01300C3-With Brake Z3805.1––171.5130BS01800C3-Standard3806.3––164130BS01800C3-With Brake Z3806.3––189.5130BS02300C3-Standard3808.5––186130BS02300C3-With Brake Z3808.5––211.5Motor Specifications (Standard Series):Parameter130B51100C2-17D/17N130B50850C3-17D/17N130B51300C2-17D/17N130B51300C3-17D/17NRated Power (W)110085013001300Rated Voltage (V)220380220380Rated Current (Arms)6.03.17.75.1Peak Current (Arms)18.59.523.715.6Rated Torque (Nm)5.255.418.288.28Peak Torque (Nm)15.7516.2324.8424.84Rated Speed (rpm)2000150015001500Max Speed (rpm)4000300030003000Back-EMF (V/Krpm)5110863100Torque Constant (Nm/a)0.881.751.081.62Line Resistance (Ohm)0.854.00.792.0D-axis Inductance (mH)4.417.64.710.8Q-axis Inductance (mH)5.421.45.913.4Electrical Time Constant (ms)10.48.811.910.8Motor Specifications (With Brake):Motor Parameter130BS1800C2 – 17DZ/17NZ130BS1800C3 – 17DZ/17NZ130BS2300C2 – 17DZ/17NZ130BS2300C3 – 17DZ/17NZRated Power (W)1800180023002300Rated Voltage (V)220380220380Rated Current (Arms)9.86.312.48.5Instantaneous Max Current (Arms)30.219.238.426.2Rated Torque (Nm)11.4611.4614.6414.64Instantaneous Max Torque (Nm)34.3834.3843.9243.92Rated Speed (rpm)1500150015001500Max Speed (rpm)3000300030003000Back-EMF (V/Krpm)6810767103Torque Constant (Nm/a)1.171.821.21.72Line Resistance (Ohm)0.621.560.420.99D-axis Inductance (mH)3.38.22.65.9Q-axis Inductance (mH)4.110.33.17.2Electrical Time Constant (ms)10.710.512.411.9Rotor Inertia23.7With brake 25.731.2With brake 33.2Mass (kg)8.0With brake 9.510.0With brake 11.5Body Length (mm)164With brake 189.5186With brake 211.5Number of Pole Pairs10Encoder Lines17D (Single-turn)/17N (Multi-turn)Insulation ClassF (155°C)Protection ClassIP65Mechanical Specifications:SpecificationStandard ModelWith BrakeRotor Inertia (×10⁻³kg·m²)12.1/17.514.1/19.5Weight (kg)5.2/6.66.7/7.8Body Length (mm)130/146155.5/171.5General Specifications:ItemSpecificationPole Pairs10Encoder Type17D (Single-turn)/17N (Multi-turn)Insulation ClassF (155°C)Protection ClassIP65Key Features:17-bit/23-bit absolute photoelectric encoderHigh-end and high responsivenessGood high-speed performance (rated speed up to 3000 rpm, max 6000 rpm)Strong overload resistance (withstands up to 3x rated torque)Smooth operation at low speed, no step operation phenomenonShort dynamic response time (tens of milliseconds)Reduced heat and noise
