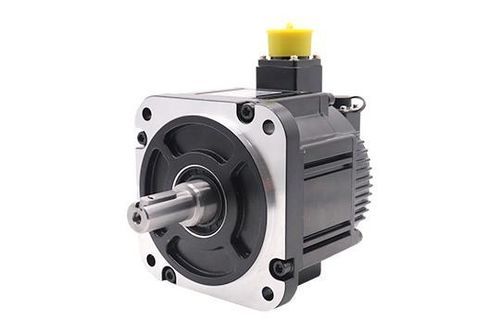

AC-Servomotor 110B series

380 VIP6510-polig

Product Features:17-bit and 23-bit absolute photoelectric encoder, offering high-end performance and high responsiveness.Speed: Excellent high-speed performance. The rated speed can generally reach 3000 rpm, with a maximum speed of up to 6000 rpm.Adaptability: Strong overload resistance, can withstand loads up to three times the rated torque. Especially suitable for situations with sudden load changes requiring rapid start.Stability: Smooth operation at low speed. No step operation phenomenon occurs at low speed, unlike stepper motors. Suitable for applications requiring fast response.Timeliness: The dynamic response time for motor acceleration and deceleration is short, generally within a few tens of milliseconds.Comfort: Heat and noise are significantly reduced.Product Specifications:ModelVoltage (VAC)Current (A)Torque (Nm)Weight (kg)Body Length (mm)110B51200C3-Standard3803.1––140110B51200C3-Brake Z3803.1––165.5110B51800C3-Standard3804.0––163110B51800C3-Brake Z3804.0––188.5Motor Specifications:Parameter110B51200C3-17D/17N110B51200C3-17DZ/17NZ110B51800C3-17D/17N110B51800C3-17DZ/17NZRated Power (W)1200120018001800Rated Voltage (V)380380380380Rated Current (A)3.13.14.04.0Peak Current (A)9.39.31212Rated Torque (N·m)3.823.825.735.73Peak Torque (N·m)11.4611.4617.1917.19Rated Speed (rpm)3000300030003000Max Speed (rpm)4500450040004000Back-EMF (V/Krpm)78788888Torque Constant (N·m/A)1.231.231.431.43Winding Resistance (Ohm)2.42.471.91.9D-axis Inductance (mH)11.811.89.59.5Q-axis Inductance (mH)15.015.013.013.0Electrical Time Constant (ms)9.89.810.010.0BrakeWithout brakeWith brakeWithout brakeWith brakeRotor Inertia (10⁻⁴kg·m²)5.26.47.89.0Weight (kg)4.45.45.96.9Body Length (mm)140165.5163188.5Number of Poles10101010Encoder Resolution17D (Singleturn)17DZ (Multiturn)17N (Singleturn)17NZ (Multiturn)Insulation ClassFFFFProtection ClassIP65IP65IP65IP65Outline Drawing:Key Features:17-bit and 23-bit absolute photoelectric encoderHigh-end and high responsivenessRated speed: 3000 rpm, max speed: 6000 rpmStrong overload resistance (up to 3x rated torque)Smooth low-speed operation, no step operation phenomenonShort dynamic response time (tens of milliseconds)Reduced heat and noiseRated power: 1200W/1800WRated voltage: 380VProtection class: IP65
