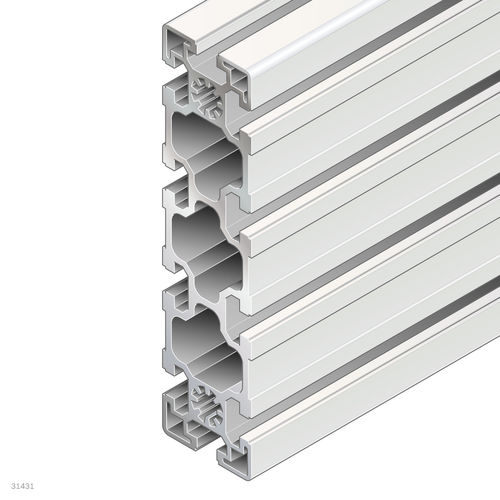

Profiltyp - Standard
Offene Nuten - 10
Länge [Lmax] [mm] - 6070
Liefereinheit - 6
Profilfläche [A] [cm²] - 25.5
Widerstandsmoment in Y-Richtung [Wy] [cm³] - 25.5
Flächenträgheitsmoment in Y-Richtung [ly] [cm⁴] - 57.3
Torsionsträgheitsmoment [It] [cm⁴] - 44.4
Widerstandsmoment in X-Richtung [Wx] [cm³] - 85.2
Flächenträgheitsmoment in X-Richtung [lx] [cm⁴] - 766.7
Torsionswiderstandsmoment [Wt] [cm³] - 17
Masse [m] [kg] - 6.9
Gewicht [kg] - 273.6
