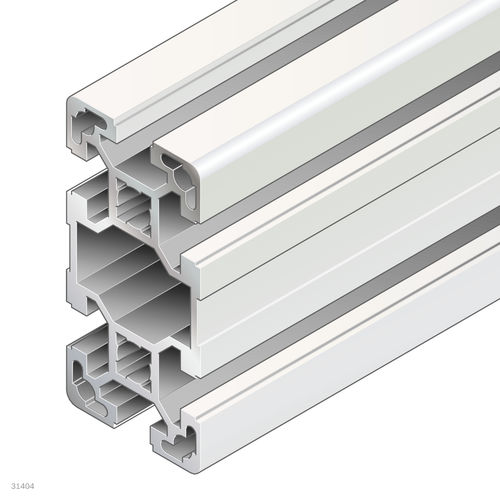

Profiltyp - Standard
Offene Nuten - 6
Länge [Lmax] [mm] - 6070
Liefereinheit - 12
Profilfläche [A] [cm²] - 9.9
Widerstandsmoment in Y-Richtung [Wy] [cm³] - 8.7
Flächenträgheitsmoment in Y-Richtung [ly] [cm⁴] - 17.3
Torsionsträgheitsmoment [It] [cm⁴] - 8.02
Widerstandsmoment in X-Richtung [Wx] [cm³] - 15.9
Flächenträgheitsmoment in X-Richtung [lx] [cm⁴] - 63.4
Torsionswiderstandsmoment [Wt] [cm³] - 4.8
Masse [m] [kg] - 2.7
Gewicht [kg] - 220
