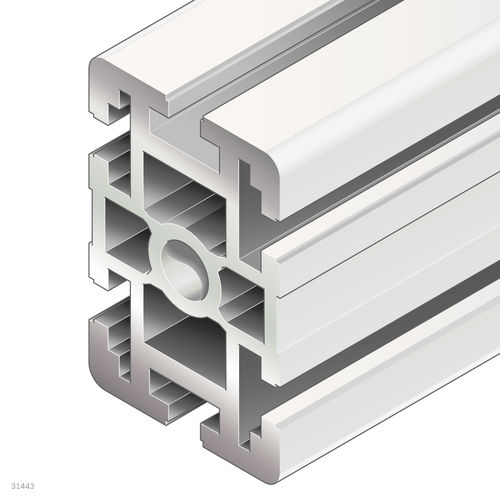

Profiltyp - Standard
Offene Nuten - 6
Liefereinheit - 10
Länge [Lmax] [mm] - 6070
Masse [m] [kg] - 7
Profilfläche [A] [cm²] - 25.8
Widerstandsmoment in Y-Richtung [Wy] [cm³] - 30.2
Flächenträgheitsmoment in Y-Richtung [ly] [cm⁴] - 90.5
Torsionsträgheitsmoment [It] [cm⁴] - 45.8
Widerstandsmoment in X-Richtung [Wx] [cm³] - 47.6
Flächenträgheitsmoment in X-Richtung [lx] [cm⁴] - 214.2
Torsionswiderstandsmoment [Wt] [cm³] - 18
Gewicht [kg] - 443
