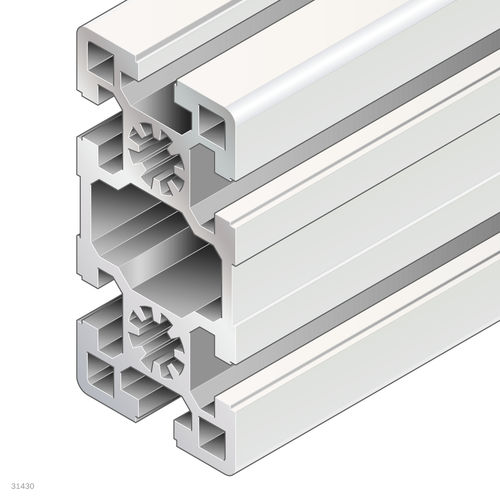

Profiltyp - Standard
Offene Nuten - 6
Länge [Lmax] [mm] - 6070
Liefereinheit - 12
Profilfläche [A] [cm²] - 15.4
Widerstandsmoment in Y-Richtung [Wy] [cm³] - 14.6
Flächenträgheitsmoment in Y-Richtung [ly] [cm⁴] - 32.8
Torsionsträgheitsmoment [It] [cm⁴] - 15.4
Widerstandsmoment in X-Richtung [Wx] [cm³] - 27.7
Flächenträgheitsmoment in X-Richtung [lx] [cm⁴] - 124.6
Torsionswiderstandsmoment [Wt] [cm³] - 6.61
Masse [m] [kg] - 4.2
Gewicht [kg] - 307
