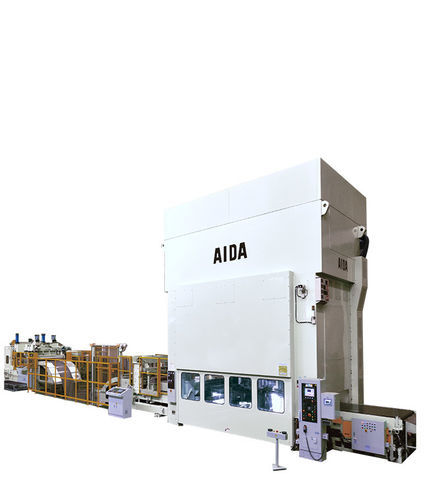

Mechanische Presse PMX-S4 series

FormUmformfür Blech

Overview
The PMX-S4 Series is composed by high-precision, high-rigidity, straight side 4-point presses for progressive die applications. The highly rigid tie-rod frame coupled with bearings designed with minimal overall bearing clearances keep breakthrough to a minimum, which reduces noise, enables high long-term accuracy and extends die life. The PMX-S4 presses are manufactured with the slide suspension point centers positioned in very close proximity to the tie rod centers; the optimal structure for multi process forming, that enable widely-spaced left and right suspension points and heavy-duty eccentric loading capabilities. Moreover, the built-in dynamic counterbalances reduce vibration and enable stable high-speed production.

Features

• Manufactured with forged eccentric shafts on a very low deflection tie rod frame with dynamic balancing of slide and upper die
• Built-in dynamic counterbalances reduce vibration and enable stable high-speed production
• The wide spacing between the points enables the PMX-S4 presses to effectively withstand off-center loads
• The highly rigid frame can withstand the progressive stamping of thick sheet metal
• The symmetrical front-to-back and left-to-right frame maintains high dynamic accuracy

Main Specifications (as shown on product page)
Model: PMX-S4-2000 (colspan 2) | PMX-S4-3000 (colspan 3) | PMX-S4-4000 (colspan 2) | PMX-S4-5000 (colspan 2) | PMX-S4-6000
Variant: 1 / 2 | 1 / 2 / 3 | 1 / 2 | 1 / 2 | 1
Capacity (kN)*: 2000 | 3000 | 4000 | 5000 | 6000
Stroke length (mm): 200 | 200 | 200 | 300 | 250
Strokes per minute (min-1): 50~120 | 40~100 | 30~80 | 30~60 | 30~70
Die height (mm): 475 | 550 | 650 | 700 | 750
Slide area (mm) (L/R x F/B): 1550×830; 1850×880; 1850×880; 2150×1000; 2450×1200; 2150×1150; 2450×1150; 2150×1150; 2450×1150; 2450×1250 (values presented per variant in table)
Bolster area (mm) (L/R x F/B): 1550×950; 1850×950; 1850×1000; 2150×1000; 2450×1200; 2150×1250; 2450×1250; 2150×1250; 2450×1250; 2450×1400 (values presented per variant in table)
Max. upper die weight (kg): 1000; 1000; 1500; 3000; 3000; 3000 (presented per model/variant in table)
Side opening (mm): 850×375; 900×450; 1020×450; 1220×450; 1170×450; 1170×550; 1270×650 (values presented per model/variant in table)

Notes
*Available up to 16000 kN (noted on page).

Caractéristiques / Spécifications techniques

• Manufacturer / Brand: AIDA
• Series / Commercial denomination: PMX-S4 Series
• Press type: 4-point transversal shafts straight side presses for progressive die applications
• Press capacity range (standard series on page): 2000 kN to 12000 kN (page notes availability up to 16000 kN)
• Stroke length (examples from table): typically 200 mm (models), up to 300 mm / 250 mm for larger models
• Strokes per minute ranges (examples): 50~120; 40~100; 30~80; 30~60; 30~70 (depending on model/variant)
• Die height examples: 475 mm to 750 mm (depending on model)
• Slide and bolster area: multiple L/R × F/B configurations provided per model/variant (see table values)
• Max. upper die weight examples: up to 3000 kg for larger models (see table)
• Frame / construction: highly rigid tie-rod frame, symmetrical front-to-back and left-to-right
• Crankshaft / eccentric: forged eccentric shafts; slide suspension centers close to tie rod centers for multi-process forming and heavy-duty eccentric loading
• Vibration control: built-in dynamic counterbalances for reduced vibration and stable high-speed production
