PC / Edge AI PN-Palladio-500-RPL-AI

KIKI-InferenzGPU

Produktübersicht

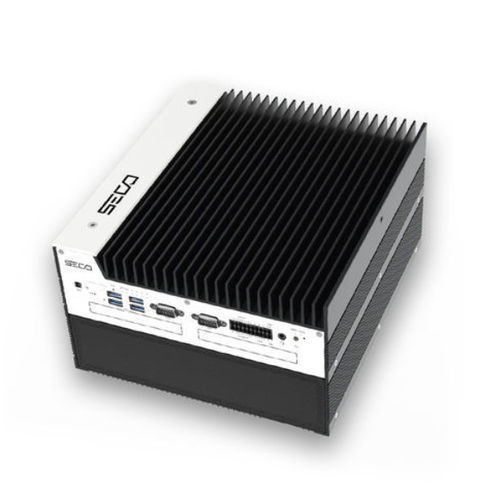

The Palladio 500 RPL AI is a modular embedded PC and high-performance industrial workstation powered by 13th Gen Intel® Core™ processors and Intel® Arc™ Pro B50 Graphics. Modular design optimized for edge AI and advanced graphics applications.

Höhepunkte

• CPU: 13th Gen Intel® Core™ i3/i5/i7/i9 Processors
• AI Accelerator: Intel® Arc™ Pro B50 powered AI acceleration (up to 170 INT8 TOPS)
• Memory: Up to 32 GB SO-DIMM DDR4 2666
• Connectivity: 2x 2.5 GbE LAN (2x PoE optional)

Kurzbeschreibung
Modular embedded PC with 13th Gen Intel® Core™ processors and Intel® Arc™ Pro B50 Graphics. The Palladio 500 RPL AI is a high-performance industrial workstation for edge AI and advanced graphics applications.

Charactéristiques / spécifications techniques

• CPU Description: 13th Gen Intel® Core™ Processors (codename: Raptor Lake-P)
• Intel® Core™ i3-13100E, 3.3~4.4 GHz, 4 cores, 8 threads - 60 W TDP
• Intel® Core™ i3-13100TE, 2.1~4.1 GHz, 4 cores, 8 threads - 35 W TDP
• Intel® Core™ i5-13500E, 2.4~4.6 GHz, 14 cores, 20 threads - 65 W TDP
• Intel® Core™ i5-13500TE, 1.3~4.5 GHz, 14 cores, 20 threads - 35 W TDP
• Intel® Core™ i7-13700E, 1.9~5.1 GHz, 16 cores, 24 threads - 65 W TDP
• Intel® Core™ i7-13700TE, 1.1~4.8 GHz, 16 cores, 24 threads - 35 W TDP
• Intel® Core™ i9-13900E, 1.8~5.2 GHz, 24 cores, 32 threads - 65 W TDP
• Intel® Core™ i9-13900TE, 1.0~5.0 GHz, 24 cores, 32 threads - 35 W TDP
• Memory: Up to 32 GB SO-DIMM DDR4 2666 (optional)
• Graphics: Intel® Arc™ Pro B50 Graphics with 16 GB DDR6 VRAM support; support for up to four independent displays at up to 8K60 resolution
• Video Interfaces: 2x DisplayPort
• Video Resolution: Up to 4K @ 60 Hz
• Mass Storage: 1x M.2 2280 (SATA); 1x M.2 2280 (PCIe Gen4 x4; SATA); 2x SATA 2.5" drives (optional hot-swap); 1x M.2 2280 (PCIe Gen4 x4)
• Networking: Intel® embedded M.2 2230 802.11ac Wi‑Fi BT 5.1 card with cables (optional); Dual-band wireless terminal PIFA antenna (optional); 2x 2.5 GbE LAN (2x PoE optional)
• USB: 6x USB 3.2 Gen 2 ports
• PCI / Expansion: 1x mPCIe (PCIe x1; USB 2.0); 1x M.2 2230 E-key (PCIe x1; USB 2.0); 1x M.2 2280 M-key (PCIe Gen4 x4); 1x M.2 2280 M-key (PCIe Gen4 x4; SATA); 1x M.2 3042/3052/2280 B-key (PCIe x2; USB 2.0; USB 3.0; SATA); 1x PCIe Gen4 x16 or 2x PCIe Gen4 x8 (factory option)
• Audio: 1x 3.5 mm audio
• Serial Ports: 2x COM RS-232/422/485 ports
• Other Interfaces: 5‑Pin terminal block power input (12~48 VDC); 2x ModBay expansion 7‑9.5 mm (optional); 1x GPIO terminal block (DIO, CAN, Ext. Switch); 2x 3FF Micro‑SIM; 1x power button; 1x external fan connector; 2x 2.5" hot-swap drives (optional)
• Security: PTT in BIOS; TPM (optional); Watchdog timer
• Power Supply: 12~48 VDC (20~48 VDC when configured with PCIe expansion 70W or above)
• Operating System: Compatible with Linux, Windows
• Operating Temperature: -40 to 70°C (with 35W CPU); -40 to 50°C (with 65W CPU)
• Dimensions: 240 x 143 x 267 mm
