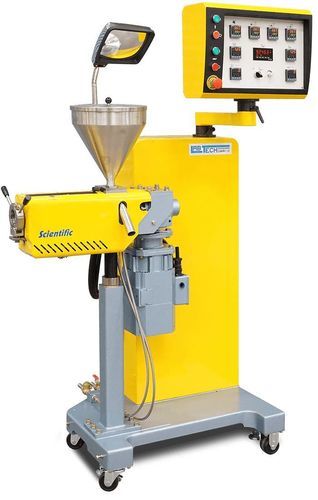

Einschneckenextruder LE series

GlattrohrEntgasungLabor

Labor single-screw extruders with diameters from 8 to 45 mm and screw lengths of L/D 30:1. The extruders with 25, 30, 40, and 45 mm screw diameters are available with and without degassing, as well as with pure conveying screws or screws with mixing sections. Our 12.5 mm and 20 mm extruders are available in both the standard version and as a benchtop version. For co-extrusion applications, our extruders can be equipped with gravimetric dosing and a large LCD touch screen for control. This system enables very simple and precise control of layer thicknesses, where the desired layer thickness can be entered as a percentage of the total layer thickness or in weight units of the total weight. - Laboratory single-screw extruders with diameters from 8 to 45 mm - Screw length L/D 30:1 - Available with and without degassing - Available with pure conveying screws or screws with mixing sections - 12.5 mm and 20 mm extruders also available as benchtop versions - Optional gravimetric dosing and large LCD touch screen for co-extrusion applications - Precise control of layer thicknesses in percentage or weight units Technical Specifications: - Screw diameters: 12.5 mm, 20 mm, 25 mm, 30 mm, 40 mm, 45 mm - Motor power: 0.75 kW to 22 kW - Screw speed range: up to 300 RPM (depending on model) - Number of heating zones: 3 or 4 (depending on model) - Total heating power: 1,400 W to 9,600 W - Maximum output with LDPE: 1 kg/hr to 60 kg/hr
