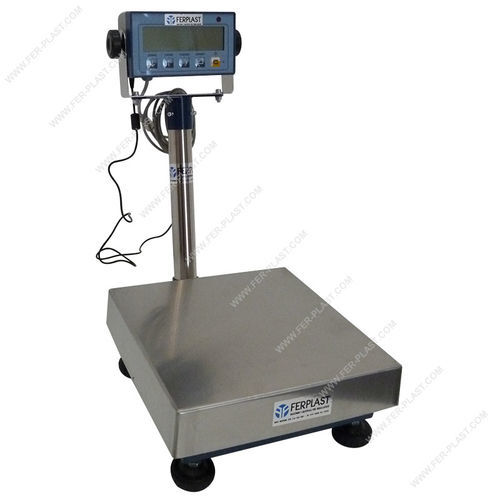

Digitaler Wägeindikator FPDFWL

BenchtopwasserdichtIP54

Digital weight indicators for scales and mobile weighing systems.“FPDFWL”: MULTIFUNCTION WEIGHT INDICATOR – IP 54/68The FPDFWL weight indicator is multifunctional and easy to use. It features a wide range of functions and interfaces, making it suitable for various demanding weighing applications in industrial or commercial sectors. It is particularly suitable for mobile weighing systems such as pallet trucks or forklifts, as well as for the automotive industry. The indicator is supplied with a bracket with adjustable tilt for use on a table, column, or wall. CE-M approval (OIML R-76 / EN 45501).Available in the following models:FPDFWL: Basic weighing indicator with ABS-IP54 housing and 25-mm display with 6 digits – AA batteriesFPDFWLB: Weight indicator for industrial environments with ABS-IP68 housing and 25-mm display with 6 digits – internal rechargeable batteryTECHNICAL FEATURESFunctional waterproof keyboard, 5 keysBacklit LCD display, 25 mm, with 6 high-contrast digits and symbols to indicate active functionsABS housing IP54 or IP68, easy to clean and resistant to harsh and corrosive environmentsSuitable for use on table, column, or wallMounting bracket with adjustable tilt included24-bit A/D converter, 4 channels, max. 200 conv./sec. automatic selection and up to 8 signal linearization pointsMax. 10,000e or multiple 3 x 3000e at 0.3 microvolt/day in approved version for legal CE-M useMaximum 1,000,000 displayable divisions with internal resolution up to 3,000,000 pointsConnection with up to 8 load cells with an input resistance of 350 Ohm or up to 16 cells with 700 OhmCalibration and digital setup via keyboard or PCPower supply from 5 to 12 VDCThe base model FPDFWL is supplied with a removable drawer for 4 AA batteries (not included), also rechargeable, and an external 12V power supply (if connected, no battery power).KEY COMMANDSZeroing, automatic tare, preset tare, printing and/or data transmission, selected function command, on/offSELECTABLE FUNCTIONSHigh-resolution weighing x 10, net/gross or lb/kg conversion, accumulation, formula weighing, +/- control, percent weighing, weight-checked transmission to PC/PLC or storage on MMC/USB (with Alibi memory ALMEM option), piece counting, input/output, hold and peak value.I/O SECTIONBidirectional RS232/C on RJ45 connector for fast connection (optional RS485), configurable for PC, PLC, additional remote display.Bidirectional RS232/C connector for connection to printer or labelerTechnical Specifications / FeaturesProduct: FPDFWL GEWICHTSANZEIGEModels: FPDFWL (IP54, AA batteries), FPDFWLB (IP68, internal rechargeable battery)Display: 25 mm, 6 digits, backlit LCDHousing: ABS, IP54 or IP68Mounting: Table, column, or wall (bracket included)Power: 4x AA batteries or external 12V (FPDFWL); internal rechargeable battery (FPDFWLB)Approval: CE-M (OIML R-76 / EN 45501)Max. divisions: 10,000e or 3 x 3000e; up to 1,000,000 displayableLoad cell connection: Up to 8 (350 Ohm) or 16 (700 Ohm)Interfaces: RS232/C, optional RS485Functions: Zero, tare, print, data transfer, high-res weighing, net/gross, accumulation, formula, +/- control, percent, piece counting, hold, peak, etc.
