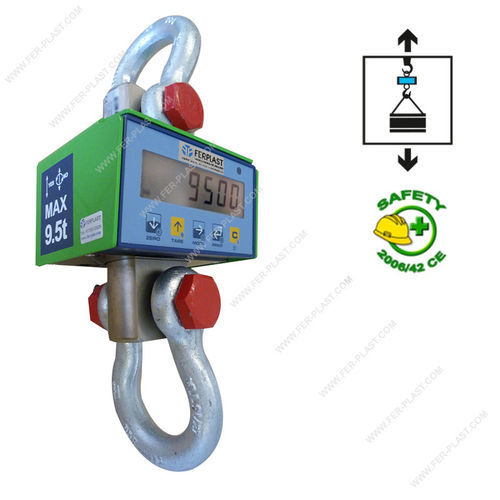

Digitales Kraftmessgerät FPMCWN series

tragbarkompaktBluetooth

FPMCWN-DYNAMOMETER – FOR LIFTING AND WEIGHINGProfessional digital dynamometers for weighing with cranes in industrial environments. They are simple and reliable and, thanks to their compact dimensions, only slightly increase the lifting path between the crane used and the goods. Supplied with a protective carrying case. Also available with CE-M APPROVAL.All models can be equipped with the 868 MHz radio frequency module, which enables communication between dynamometers and PCs, weight indicators, and weight repeaters.NOTE: All versions are supplied with a calibration certificate, performed with test weights for the entire capacity.MAIN FEATURES• Single safety for lifting the load and weighing.• Complies with directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30/EU.• Upper and lower shackle as standard: GR3 for FPMCWNT1, GR6 for FPMCWNT3, GR6 for FPMCWNT6, and GR9 for FPMCWNT9.• Compact dimensions, minimal distance between upper and lower shackles.• 25 mm large, backlit LCD display, clearly visible in all lighting conditions.• Accuracy 0.03% of F.S.• Waterproof keyboard with 5 keys: zeroing, semi-automatic or preset tare, mode, print, on/off.• Robust structure made of painted steel.• Standard infrared remote control for use up to 8 m away. The remote control can be configured by the customer only as automatic tare or as a remote keyboard.• Powered by 4 AA batteries, 40 hours (without high-frequency module), or continuous operation with rechargeable AA batteries (not included).• Digital calibration and programmable setup directly via keyboard or PC.• Programmable digital filter and automatic shutdown.• Operating temperatures: -10 / +40 ºC.• Serial RS232 port on RJ11 connector for fast programming.• Standard protective case for transport; dimensions (WxLxH) 175x480x390mm.SELECTABLE FUNCTIONS- High-resolution x10 display- Precision weighing with temporary recalibration using the test weight (for internal use in the factory)- Net / Gross- Conversion lb/kg- Free conversion factor (for meter counting systems, liter counting, etc.)- Weight summation- Formulation- +/- control with quick input of targets and thresholds- Percent weighing- Dosing in percent with programmable target- Piece counter- Hold- Filling/dosing with two speeds and start-reset (with optional DFIO)- PEAK, detection of weight peaks- Newton-kg conversionCodeLoad kgStandard division kgDivision CE-M kgFPMCWNT1300/600/15000.1/0.2/0.5--FPMCWNT1M1500--0.5FPMCWNT3600/1500/30000.2/0.5/1--FPMCWNT3M3000--1FPMCWNT61500/3000/60000.5/1/2--FPMCWNT6M6000--2FPMCWNT93000/6000/95001/2/5--FPMCWNT9M9000--5AVAILABLE AT THE TIME OF ORDER• External 868MHz radio module for PC, with USB cable L = 1m. Direct power supply via USB port.• Standard weighing indicator or with integrated printer (to be equipped with 868 MHz radio module)• Weight indicator with 100-mm LED display – IP68 stainless steel (to be equipped with 868 MHz radio module)• Wireless, portable weight repeater with integrated high-frequency module• Radio frequency weight repeater• Internal Bluetooth interface• Calendar clock• Alibi memoryProfessional digital dynamometers for cranes, for weighing in industrial environments, capacity from 300 kg to 9500 kg.Characteristics / Technical Specifications:Single safety for lifting and weighingComplies with 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30/EUStandard upper and lower shackles: GR3 (FPMCWNT1), GR6 (FPMCWNT3, FPMCWNT6), GR9 (FPMCWNT9)Compact dimensions, minimal distance between shackles25 mm backlit LCD displayAccuracy: 0.03% of F.S.Waterproof 5-key keyboardPainted steel structureInfrared remote control (up to 8 m)Power: 4 AA batteries (40h) or rechargeable (not included)Digital calibration and setup via keyboard/PCProgrammable digital filter, auto-offOperating temperature: -10/+40°CRS232 serial port (RJ11)Protective transport case (175x480x390mm)
