Waage für gewerbliche Nutzung FPFL series

elektronischPlattformmit Innenverbindung

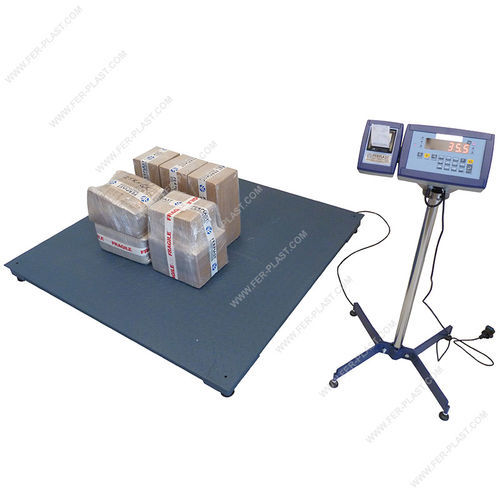

Electronic monoblock floor weighing platforms, simple, economical, and reliable. CE-M approved.FLOOR SCALES “FLOOR” SERIES FPFL – WEIGHT INDICATOR EXCLUDEDThe scales of the FLOOR series are typically used in all types of industrial and commercial sectors for weighing pallets, cartons, or packages. They can be installed in the floor or on an existing packaging line. The scales are available in standard versions or with approved CE-M load cells for sale to third parties.TECHNICAL FEATURES OF PLATFORM WEIGHING• Equipped with 4 shear beam load cells made of nickel-plated 350-ohm steel, approved according to OIML R60 C3 standards (3000 divisions), protection class IP67.• Oven-painted monoblock steel tube with adjustable feet and spirit level.• Lapped, fixed loading platform made of sheet steel.• Power supply max. 15 VDC.• Hermetic junction box, IP67 wiring with 3 m shielded cable for connection to the indicator.CodeDimensionsLoad kgDivision Standard grDivision CE-M gr (*)FPFLA 6001000x1000x120 mm600200200FPFLA 15001000x1000x120 mm600/1500200/500500FPFLM 6001000x1250x120 mm600200200FPFLM 15001000x1250x120 mm600/1500200/500500FPFLB 6001250x1250x120 mm600200200FPFLB 15001250x1250x120 mm600/1500200/500500FPFLD 15001250x1500x120 mm1500500500FPFLD 30001250x1500x120 mm1500/3000500/10001000FPFLE 15001500x1500x120 mm1500500500FPFLE 30001500x1500x120 mm1500/3000500/10001000(*) CE-M scale divisions (approved) only available with the corresponding options together with our indicators.WEIGHT INDICATORS:Weight indicators can be placed on the floor, wall-mounted, or placed on the support column.- FPDFWL base weight indicator: FPDFWL BASE indicators with waterproof function keypad with 5 keys, 25 mm high-contrast, backlit LCD display with 6 digits and symbols for displaying active functions. Thanks to the ABS IP54 housing, they are easy to clean and resistant to harsh and corrosive environments.- FPDFWKPXP weight indicator - integrated printer: Weighing indicators with 17-key numeric, waterproof keypad and 25 mm backlit LCD display. With 6 high-contrast digits with symbols for displaying active functions. Integrated thermal printer and calendar clock. The waterproof IP65 ABS housing is easy to clean and durable, suitable for weighing in harsh and corrosive environments.- FPDFWDXT weight indicator: Weight indicator with large 40 mm display with high-brightness red LEDs, suitable for viewing from any angle and from a great distance. Equipped with a stainless steel housing with IP68 protection against rain and dust, easy to clean and resistant to harsh and corrosive environments.- FPDFWLIP stainless steel weight indicator: IP68 stainless steel weighing indicator with 5-key function keypad and 40 mm color LCD display with backlight. With 6 high-contrast digits and symbols for displaying active functions. Ideal for applications in wet and heavy environments and in combination with stainless steel scales. With internal power supply.Thermal adhesive paper for printer:Box with 50 rolls of self-adhesive thermal paper, each 15 m.Width 57 mm, hole 18 mm, outer diameter 50 mm - Minimum order price per unit 1 box with 50 pieces.OPTIONAL:- Support column for weight indicators- Stainless steel support column for weight indicators- CE-M approval for sale to third partiesEquipped with 4 shear beam load cells, nickel-plated steel, OIML R60 C3, IP67Oven-painted monoblock steel tube, adjustable feet, spirit levelLapped, fixed loading platform, sheet steelMax. power supply: 15 VDCHermetic junction box, IP67, 3 m shielded cableVarious models and sizes available (see table above)Weight indicators: FPDFWL BASE, FPDFWKPXP (with printer), FPDFWDXT (LED), FPDFWLIP (stainless steel)Optional: support columns, CE-M approval
