Waage mit Niederprofil-Plattform FPL series

mit LaufgewichtStahlwasserdicht

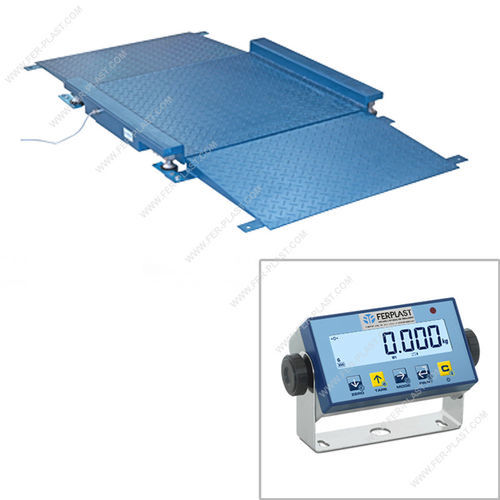

Floor scales with loading ramps FPL series with low profile – indicator excludedFlat platforms with embossed steel frame and ramps made of painted steel. They are suitable for weighing trolleys and pallet trucks, as they are equipped with loading/unloading ramps and side rails on the weighing platform. Available as standard or CE-M approved version.Technical features- Operates with 4 shear beam load cells 350 Ohm made of nickel-plated steel, approved according to OIML R60 C3 standards (3000 divisions), protection class IP67.- Structure and loading surface made of embossed steel, oven-painted, color RAL 5007 blue.- Adjustable, shockproof, adjustable feet and spirit level.- Power supply from 5 to 15 Vdc.- Hermetic junction box, IP67 cabling with 5 m shielded cable for connection to the indicator.- Side grids and double ramp up/down, standard.CodeDimensions (LxWxH)Load kgStandard Division gDivision CE-M gFPLC800x800x52 mm600200200FPLA1000x1250x52 mm1500500500FPLB1250x1500x52 mm200010001000(*) CE-M divisions are only available with the corresponding options in combination with our indicators.Optional:Weight indicators can be placed on the floor, hung on the wall, or placed on the support column.- FPDFWL - Basic weight indicator- FPDFWL BASE - Indicators with waterproof function keyboard with 5 keys, 25 mm high-contrast backlit LCD display with 6 digits and symbols for displaying active functions. Thanks to the ABS-IP54 housing, they are easy to clean and resistant to harsh and corrosive environments.- Weight indicator FPDFWKPXP - integrated printerWeighing indicators with 17-key numeric, waterproof keyboard and 25 mm backlit LCD display. With 6 high-contrast digits with symbols for displaying active functions. Integrated thermal printer and calendar clock.The waterproof IP65 ABS housing is easy to clean and durable and is suitable for weighing in harsh and corrosive environments.- Support column for weight indicators- CE-M approval for sale to third partiesFlat platforms with up/down ramp on both sides. CE-M approved.Technical specifications:Operates with 4 shear beam load cells 350 Ohm, nickel-plated steel, OIML R60 C3 approved (3000 divisions), IP67 protection.Embossed steel structure and loading surface, oven-painted, RAL 5007 blue.Adjustable, shockproof feet and spirit level.Power supply: 5 to 15 Vdc.Hermetic junction box, IP67 cabling, 5 m shielded cable for indicator connection.Side grids and double ramp up/down, standard.
