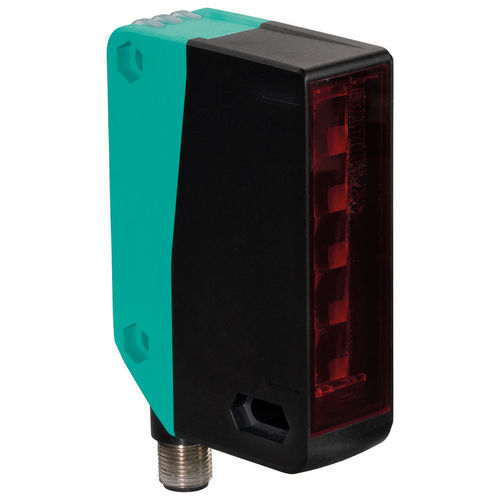

Optoelektronischer Sensor / Reflex-Lichtschranke OGR4000-R305-2EP-IO-V1

rechteckigrotes LichtLED

Product Details:Area light barrier with 5 beams in a standard light barrier housingBright, highly visible transmitter beams ensure comfortable sensor alignmentReliable detection of all surfaces regardless of object propertiesReliable detection of very flat and irregularly shaped small partsConsistent object detection from 2 mm within the entire detection rangeArea light barrier, red light, max. range 4 m, light field height 60 mm, IO-Link interface, 2 complementary outputs, M12 connectorGeneral DataOperating rangeStandard mode: 0 ... 4 m high resolution: 0 ... 2 mReflector distance0.2 ... 4 m Reflector H85-2Limit range4 mDetection areasee tableReference objectReflector H85-2Light sourceLEDLight typered, modulated lightLED risk group markingfree groupField height60 mmField width12 mmObject sizeat least 2 mm, 3 mm, 5 mm, 8 mm, 10 mm; position-independent detection within the detection areaNumber of beams5Opening angle+/- 2°Ambient light limitEN 60947-5-2Resolutionsee tableFunctional Safety DataMTTFd674 yearsService life (TM)20 yearsDiagnostic coverage (DC)0 %Indicators/ControlsOperating indicatorLED green:steady on - Power-Onblinking (4 Hz) - Short circuitblinking with short interruption (1 Hz) - IO-Link modeFunction indicatorLED yellow:steady on - Light path clearsteady off - Object detectedblinking (8 Hz) - End of compensationControlsTeach-in buttonControls5-step rotary switch for selecting operating modesElectrical DataOperating voltageUB10 ... 30 V DC IO-Link mode: 18 ... 30 V DCRipplemax. 10 %No-load currentI0< 35 mA at 24 V supply voltageProtection classIIIInterfaceInterface typeIO-LinkIO-Link version1.1Device profileIdentification and diagnostics - I&D Smart Sensor - SSP 2.1Process dataInput 8 Bit - Switching signal 1 Bit - Stability alarm 1 Bit - Measured value 6 Bit Output 2 Bit - Sensor control function 1 Bit - Evaluation control function 1 BitManufacturer ID1 (0x0001)Device ID0x101001 (1052673)Transmission rateCOM2 (38.4 kBit/s)Min. cycle time2.3 ms"SIO Mode" supportyesCompatible master port typeClass A, Class B (use 3-pin adapter or 3-pin cable)OutputSwitching typeThe switching type of the sensor is switchable. The default setting is: C/Q - Pin4: NPN normally open / dark switching, PNP normally closed / light switching, IO-Link /Q - Pin2: NPN normally closed / light switching, PNP normally open / dark switchingSignal output2 complementary outputs, short-circuit proof, reverse polarity protected, surge proofSwitching voltagemax. 30 V DCSwitching currentmax. 100 mAVoltage dropUd≤ 1.5 V DCSwitching frequencyfStandard mode: 500 Hz, high resolution: 250 HzResponse timeStandard mode: 1 ms, high resolution: 2 msComplianceCommunication interfaceIEC 61131-9 / IO-Link V1.1.4Product standardEN 60947-5-2Approvals and CertificatesUL approvalE87056, cULus Listed, "Class 2" power supply, Type Rating 1CCC approvalProducts with max. operating voltage ≤36 V are not subject to approval and therefore not marked with a CCC label.Environmental ConditionsAmbient temperature-40 ... 60 °C (-40 ... 140 °F) The permissible minimum ambient temperature during teaching is -30 °C. The permissible temperature change after teaching is ±20 K.Storage temperature-40 ... 70 °C (-40 ... 158 °F)Mechanical DataDegree of protectionIP67ConnectionDevice connector M12 x 1, 4-pin, 90° rotatableMaterialHousingPC (Polycarbonate)Light exitPlastic windowMass94 gDimensionsHeight89 mmWidth25.8 mmDepth59.5 mmKey Features / Technical Specifications:Area light barrier, red light, max. range 4 mLight field height: 60 mmIO-Link interface2 complementary outputsM12 connectorOperating voltage: 10 ... 30 V DCDegree of protection: IP67Dimensions: 89 x 25.8 x 59.5 mmMass: 94 gOperating temperature: -40 ... 60 °CHousing material: Polycarbonate (PC)
