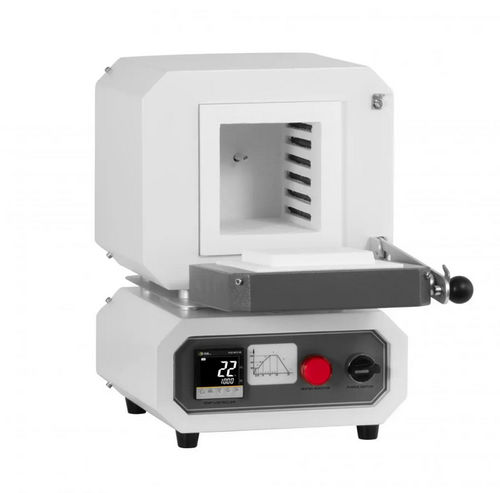

Muffelofen PCE-MOV 60

GlühSinterLabor

Muffle furnace up to 1000 °C / Chamber size: 100x100x100 mm / Built-in temperature controller / Acoustic alarm / PID controlThis compact muffle furnace is ideal for precise applications in laboratories and materials testing. With a maximum temperature of 1000 °C and a continuous operating temperature of up to 900 °C, the muffle furnace is perfect for sintering processes, annealing tests, or material analyses. The heating chamber is made of high-purity, polycrystalline alumina ceramic and offers excellent insulation properties, reducing heat loss and saving energy.The spiral-wound resistance wire made of HRE alloy is mounted on a ceramic carrier tube and ensures uniform temperature distribution throughout the furnace chamber. The free-radiating heating method inside the chamber achieves particularly efficient heat transfer with a long service life. Equipped with a precise PID controller, the muffle furnace allows temperature control with an accuracy of ±1 °C and programming of up to 30 heating segments. The robust housing made of powder-coated steel is corrosion-resistant and durable.Additional safety features such as a door contact switch, over-temperature protection, and multi-layer thermal insulation made of refractory lightweight material ensure reliable and safe operation. This muffle furnace combines modern control technology with a compact design and offers an energy-efficient solution for a wide range of thermal applications.For temperatures up to 1000 °CHeating chamber made of high-purity polycrystalline alumina ceramicPID control with ±1 °C accuracyProgrammable with up to 30 heating segmentsHousing made of powder-coated, corrosion-resistant steelMulti-layer thermal insulation with refractory lightweight materialDoor contact switch and over-temperature protection for maximum safetyIdeal for laboratory, research, materials testing, and thermal treatmentsTemperature Measuring range 20 ... 1000 °CResolution 1 °CAccuracy ±1 °C General technical data Sensor Thermocouple type NHeating element HRE spiral heating elementDimensions Chamber size: 100x100x100 mmMenu language English (GB), English (US)Protection class (device) IP20Power supply 220 V / 1.2 KWPlug type Protective contact plugOperating conditions -10 ... 50 °C , 0 ... 90 % r. H.Storage conditions -10 ... 50 °C , 0 ... 90 % r. H.Dimensions (L x W x H) 290 x 260 x 360 mmWeight 11.2 kgScope of delivery:1 x Muffle furnace PCE-MOV 601 x Heat-resistant gloves1 x Crucible tongs1 x Connection cableTechnical Specifications / FeaturesMaximum temperature: 1000 °CContinuous operating temperature: up to 900 °CChamber size: 100x100x100 mmPID controller with ±1 °C accuracyProgrammable up to 30 heating segmentsHousing: powder-coated steel, corrosion-resistantMulti-layer insulation, refractory lightweight materialDoor contact switch, over-temperature protectionThermocouple type N, HRE spiral heating elementPower supply: 220 V / 1.2 KWDimensions (L x W x H): 290 x 260 x 360 mmWeight: 11.2 kg
