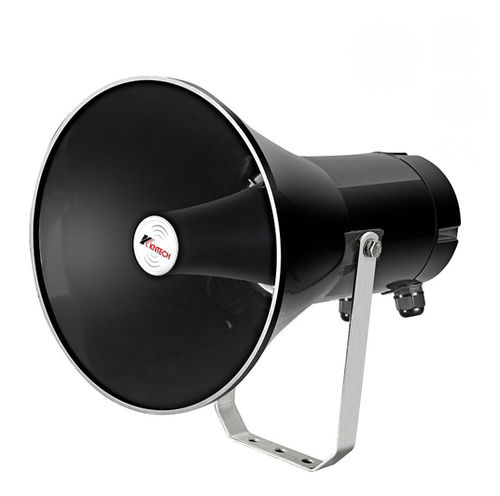

Explosionsschutz-Warnhupe KNSIPLB-Ex15

Hornstrahlerfür schwierige Umgebungenfür Innenbereich/für Außenbereich

Overview
Explosion-proof IP Network Horn Speaker KNSIPLB-Ex15. The speaker provides clear, long-range speech for remote speaking in video surveillance and public address applications. It supports live remote address via SIP/VoIP and can play pre-recorded audio files triggered manually or automatically.

Key points
The unit includes a built-in amplifier and supports Power over Ethernet (PoE). It connects to an IP network with a single network cable for communication and power. Despite low power consumption, it can achieve a sound pressure exceeding 92 dB. The speaker is a standalone unit enabling flexible, scalable, and cost-effective system design.

Features

• Explosion-proof speaker design and certified by ATEX standard.
• Material/Colour: Anti-static Polyamide / Black.
• Waterproof and dust proof rating: IP66.
• Service temperature range: -40 °C to +55 °C.
• 360° lossless broadcast capability.
• IP network horn speaker — explosion proof and waterproof.
• Suitable for public address and paging applications.
• Typical application areas: petroleum, metallurgy, chemical industry, sea oil, nuclear power, shipbuilding, tunnels, and other projects requiring explosion-proof grade speaker.

Type description
The appearance of the speaker's mold is the same across variants; the difference is whether a built-in transformer is included or not.

Product packing
Unit size: 250 (∅) * 352 (L) mm. Unit G.W.: 3.7 kg. 1 pcs in an inside box (box size: 270 x 270 x 390 mm, G.W.: 3.7 kg). 2 pcs in a CTN box (CTN box size: 570 x 290 x 420 mm, G.W.: 7.8 kg).

Additional product media and diagrams
Product images include product photo, ATEX type marking diagram, frequency response plot (1W/1m), product size drawing and installation dimension drawing.

Caractéristiques / spécifications techniques

• Model: KNSIPLB-Ex15
• Nom commercial: SIP Ex Horn Speaker
• Size (main spec shown): 413 x 254 x 277 mm
• Material: Anti-static Polyamide
• Protection rating: IP66 (waterproof & dust proof)
• Service temperature: -40 °C to +55 °C
• Sound pressure level: exceeds 92 dB (typical)
• Power & connectivity: Built-in amplifier; supports Power over Ethernet (PoE); SIP/VoIP compatible
• Audio: supports live voice and playback of pre-recorded audio files; users can upload custom audio
• Packing: unit and carton sizes and gross weights as listed in Product packing
