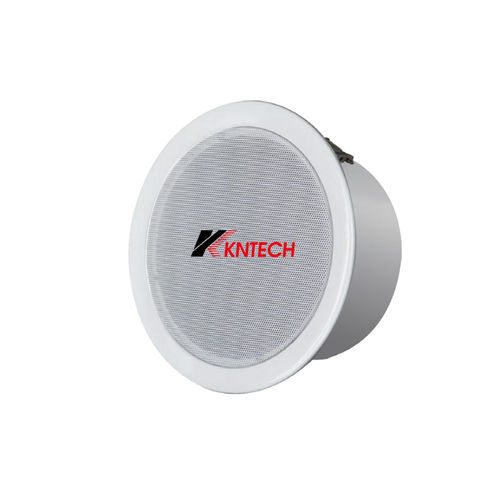

Deckenmontierter Lautsprecher KNL9-A-6W

Feuerschutzöffentlich

Produit
Model: KNL9-A-6W
Size: 197*165*98mm
Material: Metal & Fire Rated Metal Rear Cover

Key Features
The loudspeaker incorporates a single 12 cm (5") full range cone-type transducer with a smooth frequency response of 80 Hz to 20 kHz measured on axis.
The loudspeaker produces a Sound Pressure Level (SPL) of 90 dB on axis at 1 meter with a power input of 1 watt and is capable of producing 6 watts (for 100V Line) and 3 watts (for 70V Line) of power.
The loudspeaker is fitted with a factory mounted transformer with easily selectable power tappings of 6W, 3W, 1.5W and 0.8W when using 100V Line and 3W, 1.5W, 0.8W and 0.4W when using 70V Line. Push-in-type connectors make cable connection quick and easy and allow bridge wiring when necessary.

Application

• Conference rooms
• Cafes
• Churches
• Background music
• Entertainment venues
• Home theaters

Caractéristiques / Spécifications techniques

• Model: KNL9-A-6W
• Size: 197*165*98 mm
• Material: Metal & Fire Rated Metal Rear Cover
• Transducer: single 12 cm (5") full range cone-type
• Frequency response: 80 Hz to 20 kHz (measured on axis)
• SPL: 90 dB on axis at 1 m with 1 W input
• Rated power output: up to 6 W (100V line), up to 3 W (70V line)
• Transformer power tappings (100V): 6W, 3W, 1.5W, 0.8W
• Transformer power tappings (70V): 3W, 1.5W, 0.8W, 0.4W
• Connection: push-in-type connectors allowing bridge wiring
