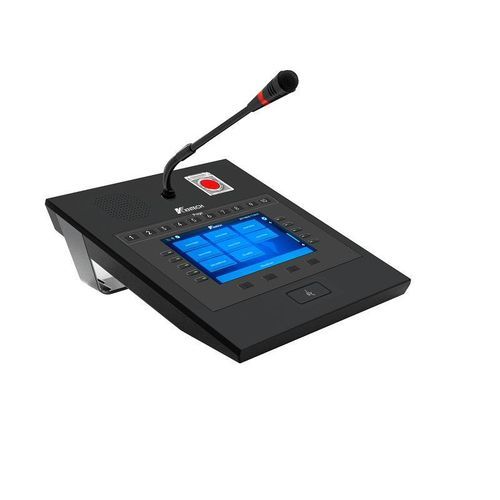

IP-Rufsäule KNPA800miniR

PoEEthernet4,3"

Présentation
Model: KNPA800miniR
Size: 213 (L) x 190 (W) x 76 (H) mm (excluding microphone)
Material: ABS (Acrylonitrile Butadiene Styrene)

Résumé
The KNPA800miniR is a professional IP Network Paging Console designed for PAGA/PA systems and Safe Area control rooms and operation centres. It enables zone paging, emergency paging activation, and system status monitoring for mission-critical communications.

Key Functional Features & Benefits

• 100-zone one-touch paging with a covered red emergency key.
• Gooseneck unidirectional microphone with momentary PTT (push-to-talk) button.
• Designed for continuous 24/7 operation with energy-saving standby features.
• Certified for safety with EN 54-16 and ISO 7240-16 compliance for voice evacuation systems.
• Vibrant 4.3-inch TFT display for intuitive zone selection, call status and fault indication.
• Effortless configuration and selection of individual zones, pre-defined groups, or all-call broadcasts.
• Clear visual indicators for power, communication status and push-to-talk activation.
• Adjustable microphone sensitivity, volume control and software-configurable parametric equalization for audio tuning.
• 3.5 mm jack for wireless microphone input to integrate external audio sources.
• Selective zone, group-zone and all-call paging options; supports scheduled and pre-recorded announcements.
• Priority-based audio routing that allows emergency announcements to override lower-priority audio.
• Secure and encrypted communications using AES67 for audio and AES70 for control.
• Power over Ethernet (PoE) operation to simplify installation.
• Dual Ethernet ports for network redundancy to ensure continuous operation.
• 100-key paging console layout: 10 pages x 10 physical paging buttons, 4 function keys, one main paging key and a guarded red emergency key under a safety cover.

Specification Highlights

• Built-in chime tone with configurable enable/disable prior to announcements.
• Supports concurrent live paging from multiple stations when zones are non-overlapping.
• Zone conflict handling via predefined priority/occupancy policies (override/queue/restriction).
• Background music (BGM) and live paging mixing with automatic BGM ducking during announcements.
• Flexible multi-zone selection and fast zone operations suitable for daily paging and emergency broadcasting.
• Front panel protection rating: IP22 (indoor control room environment).
• Supports secure access control, configurable user privileges and password policy, aligned with IEC 62443 requirements.
• Supports system monitoring: power, communication, fault indication and fault acknowledge.
• Emergency/alarm operations support press-and-hold or confirmation pop-up (configurable) with user privilege control.
• Mounting options: Desktop, Wall Mount, Flush (Panel) Mounting; cut-out dimensions and mounting brackets available as optional accessories.

System
Provides integration into PAGA/PA systems with system status monitoring and external alarm/event indication on the display, supporting acknowledge/mute operations.

Application
Intended for Safe Area control room applications (for hazardous areas use IECEx/ATEX certified field paging stations/telephones as required). Typical uses include control rooms, operation centres and other mission-critical environments requiring zoned paging, emergency alerts and integrated system monitoring.

Detailed Pictures
Multiple product images are provided showing device size, front panel, system integration and detail views.

Caractéristiques / spécifications techniques

• Nom du modèle: KNPA800miniR
• Taille: 213 x 190 x 76 mm (L x W x H) (sans microphone)
• Matériau: ABS
• Certification: EN 54-16, ISO 7240-16
• Display: 4.3-inch TFT pour sélection de zone, statut d'appel et indications de défaut
• Microphone: Gooseneck unidirectional avec bouton PTT (momentary)
• Paging: 100-zone one-touch paging (10 pages x 10 boutons physiques)
• Clé d'urgence: Bouton rouge d'urgence sous capot de sécurité (anti-misoperation)
• Audio: Parametric EQ configurable, microphone sensitivity et contrôle de volume
• Entrée audio externe: Jack 3.5 mm pour microphone sans fil
• Réseau: PoE supporté; double port Ethernet pour redondance
• Sécurité: Communications chiffrées (AES67 audio, AES70 contrôle); support exigences IEC 62443
• Fonctions avancées: Chime, mixing BGM et paging, scheduling d'annonces, priority override pour alertes
• Montage: Bureau, Mur, Encastré (Panel)
• Indice de protection: IP22 (panneau avant)
