Analoges Telefon KNSP-03-D23

IPPoELAN

Product Overview

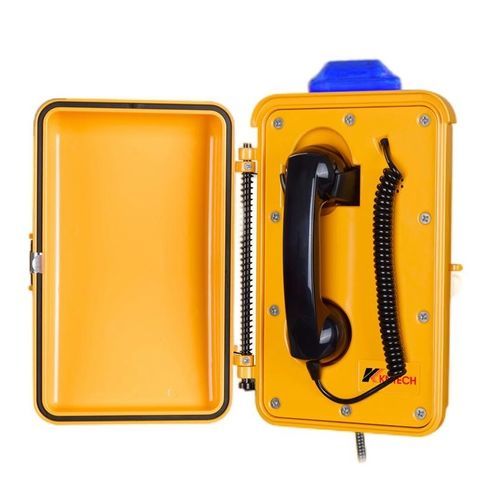

Blue Light Station industrial waterproof telephone with blue alarm can be placed in outdoor industrial work areas and hazardous areas. It is waterproof, moisture-proof, corrosion-resistant and vandal resistant.

Model / Size / Material
Model: KNSP-03-D23
Size: 320*205*120mm
Material: Aluminum alloy

Features

• Robust aluminium alloy die-cast body with vandal & tamper-resistant hardware
• Waterproof rating IP66 (dust proof)
• Line powered blue indication lamp
• Noise cancelling microphone; filters out ambient noise for clearer calls; supports hotline setting and scroll dialing (no keypad)
• Magnetic reed hook-switch
• DC input overvoltage and overcurrent protection; RJ45 surge protection
• Heavy duty handset with hearing aid compatible (HAC) receiver
• Handset with industrial strong curly cord
• Door cover: auto orient and good self-closing
• Operating temperature range: -40°C to +70°C
• Supports echo cancellation
• Support remote software upgrade, configuration and monitoring
• Powder coated in UV stabilized polyester finish
• Typical applications: tunnel, metro, railway, LRT, speedway, marine/ship/offshore, mine, power plant, bridge, etc.

Order information
Model number | Power Supply | Item Number
KNSP-03-IP-Y_AD | DC12V 1A | SP0030052
KNSP-03 -IP-Y_P | POE | SP0030022
KNSP-03 -IP-Y_ADP | DC12V 1A + POE | SP0030092
*AD — Adapter UL (Input: AC110~240V, Output: DC12V 1A).
*P — POE option.

Certifications
Australian communications: AS/CA S004
Australian equipment safety: AS/NZS 60950.1:2015
RCM: AS/NZS CISPR 32
EMC: EN55032, EN55024, EN61000-3-2

Installation
Typical mounting and dimensional drawings provided for installation and sizing (unit size 320*205*120mm).

Packaging
Unit size: 320 * 205 * 120 mm; Unit net weight: 4.86 KG
1 pcs packing box size: 439 * 277 * 191 mm; 1 pcs packed net weight: 5.8 KG
6 pcs in 1 outer carton box size: 730 * 390 * 340 mm; 6 pcs net weight (approx): 36.5 KG

Specification (key items)

• VoIP: SIP2.0 telephone
• DTMF dialing
• Audio codecs: G.711, G.72 3, G.726, G.729
• MTBF: 100000 hours; MTTR: 2 hours
• Network: 10/100 BaseTX Ethernet, RJ45
• Free dial (maximum length of each number: 32 digits)
• Communication: Full duplex 2-way
• IP Protocols: IPv4, TCP, UDP, RTP, DHCP, SIP
• Call control signaling: VOIP; SIP Info (DTMF), RFC 2833 (DTMF)
• LAN: 1 x LAN with Power over Ethernet (PoE, IEEE 802.3af)
• Power: PoE (IEEE802.3af Class 0) or local power 12 V DC (Idle 2 W, Max 10 W)
• Control: IEEE 802.1x; STP (IEEE 802.1d); RSTP (IEEE 802.1d-2004)
• Auxiliary contacts: optional
• Programming and configuration: Web GUI; non-volatile flash memory
• Outputs: 1 Aux Output, dry contact
• Load parameters: Rated load: 0.3 A at 125 VAC; 1 A at 30 VDC; Rated carry current: 1 A
• Max switching voltage: 125 VAC, 30 VDC; Max switching current: 1 A
• Echo cancellation: ITU-T G.167 / G.168

Caractéristiques / spécifications techniques

• Modèle: KNSP-03-D23
• Dimensions: 320 x 205 x 120 mm
• Corps: Aluminium die-cast, UV-stable polyester finish
• Indice de protection: IP66
• Température de fonctionnement: -40°C à +70°C
• Alimentation: PoE IEEE802.3af ou 12 V DC (avec option adaptateur)
• Consommation: Idle 2 W, Max 10 W (local power)
• Interfaces réseau: RJ45, 10/100 Mbps
• Codecs audio: G.711, G.72 3, G.726, G.729
• Fonctions de sécurité: RJ45 surge protection, DC input protection
• Options: Auxiliary dry contact output, remote SW upgrade, centralized monitoring
• Poids unitaire: 4.86 KG
