IP-Telefon KNZD-87

EthernetIP66für Tunnel

Produit

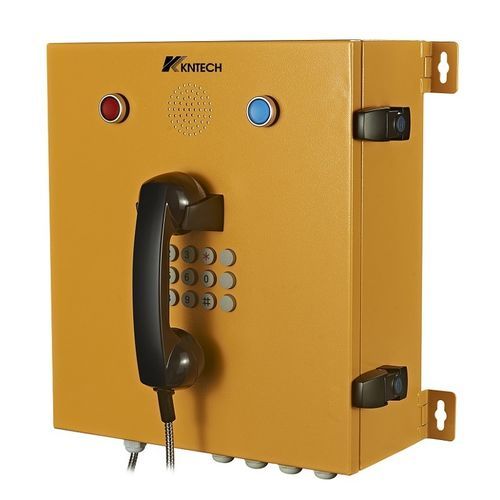

Title: Fiber Optic Telephone
Model: KNZD-87
Size: 350*400*163.2(mm)
Material:

Telephone Description

• Full duplex communication.
• Supports access to two-wire/twisted pair slaves: 2/4/8/16 units (optional).
• Supports fiber self-healing ring network access.
• Adopts corrosion-resistant and vandal-resistant cold-rolled steel waterproof and dustproof casing to extend the product life cycle, improve product reliability and stability, and prevent vandalism and tampering of hardware.
• Wall-mounted, easy to install.
• Waterproof and dustproof grade IP66.
• With digital dialing keypad.
• 3 button programmable phone, support hotline dialing.
• 2 customized buttons (optional), support volume adjustment.
• Magnetic reed hook-switch.
• Heavy duty handset with hearing aid compatible receiver, noise canceling microphone.
• Handset with industrial strong armored cable.
• Silicon keypad keep waterproof and dusty proof.
• DC input over-voltage over-current protection and RJ45 surge protection.
• Temperature range from -40 degree to +70 degree.
• Support echo cancellation.
• Remote software upgrade, configuration and monitoring.
• Optional 7 minutes limited call (upon buyer's requirement).
• Powder coated in UV stabilized polyester finish, default color yellow.
• Application: Pipeline corridor, power, tunnel, metro, railway, light rail, highway, steel plant, ship, offshore, mine, power plant, bridge, etc.

Telephone Size Display
350*400*163.2(mm) (size image available on product page)

Specification / System
Specification and system diagrams available as images on the product page

Caractéristiques / Spécifications techniques

• Model: KNZD-87
• Dimensions: 350*400*163.2(mm)
• Enclosure: Corrosion-resistant, vandal-resistant cold-rolled steel, powder coated with UV stabilized polyester finish (default yellow)
• Protection: Waterproof and dustproof grade IP66
• Operating temperature: -40°C to +70°C
• Communication: Full duplex; supports echo cancellation
• Network: Supports fiber self-healing ring network access
• Slave support: Access to 2/4/8/16 two-wire/twisted pair slaves (optional)
• Keypad/Buttons: Digital dialing keypad; 3 programmable buttons; 2 optional customized buttons; silicon waterproof keypad
• Handset: Heavy duty handset with hearing-aid compatible receiver, noise-canceling microphone, industrial armored cable
• Hook switch: Magnetic reed hook-switch
• Protection circuits: DC input over-voltage and over-current protection; RJ45 surge protection
• Remote management: Remote software upgrade, configuration and monitoring supported
• Optional: 7-minute limited call function (on request)
• Mounting: Wall-mounted
• Typical applications: Pipeline corridors, power facilities, tunnels, metro/railway/light rail, highways, steel plants, ships/offshore, mines, power plants, bridges
