Analoge Rufsäule KNZD-13

VoIPPoEEthernet

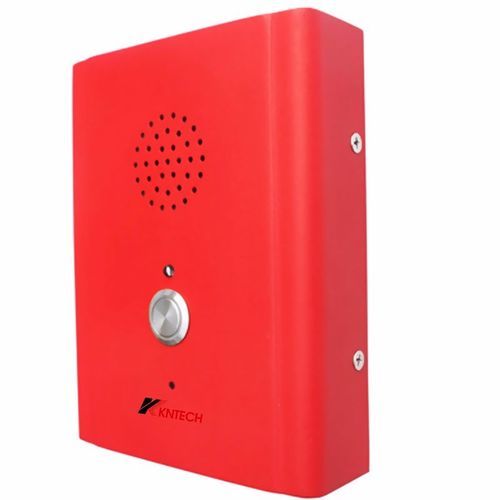

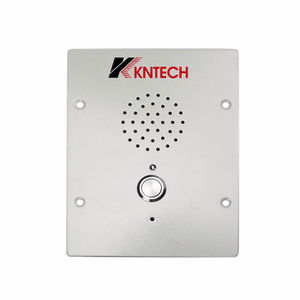

The ADA Elevator Phone is an emergency call device designed by KNTECH for elevators, available in both analogue and VoIP versions and fully ADA compliant and customizable. It provides one-touch dialing, automatic connection and hang-up, and is built for use in harsh environments.

Features

• Cold-roll steel body for easy installation.
• Waterproof rating IP55, dust proof.
• Full keypad with memory; 10-button programmable speed-dial telephone.
• Weather resistant to IP55 standard; service temperature range from -30°C to +75°C.
• Lightning protection to ITU-T recommendation K.21.
• Heavy duty handset with hearing-aid compatible receiver and noise-canceling microphone.
• Handset with industrial strong armored cord.
• Metal keypad to keep waterproof and dust proof.
• Phone integrity wiring to enable the telephone system to check if the telephone unit is still operational (if PABX supports it).
• Optional 7-minute timeout to release the line if handset is left off-hook (upon buyer's requirement).
• Powder coated in UV stabilized polyester finish.
• Housing covered with a layer of reflective label for easy identification at night (optional).
• Applications include tunnel, metro, railway, LRT, speedway, marine, ship, offshore, mine, power plant, bridge, etc.

Specification - Analogue (NO.ZD0130012)

• PSTN analogue telephone.
• DTMF dialing.
• MTBF: 100,000 hours.
• MTTR: 2 hours.
• Connection: RJ11 screw terminal pair cable (or RJ11 socket/plug upon request) with stainless steel cable protection.
• Sound level of ringing: over 70 dB(A).
• Call transmission index (5KM): SLR < 12, RLR < -1, STMR > 10; output impedance 600 Ohm; maximum distance: 7 KM.
• Applicable for various SPC exchange PABX and dispatching exchange systems with feeding voltage of 33-60V.
• Super strong function available for dialing up to 12 stored numbers (max length 16 digits each).
• Standard dialing frequencies: low group 697, 770, 852, 941 Hz; high group 1209, 1336, 1477 Hz; frequency deviation -1.5% ~ +1.5%.
• Operating ambient temperature: -30 ~ +60°C. Relative humidity: 10%~95%. Atmospheric pressure: 86~106 KPa. Circumstance noise: less than 60 dB(A).

Specification - VoIP (NO.ZD0130022)

• VoIP SIP 2.0 telephone.
• DTMF dialing (VOIP SIP Info, RFC 2833 supported).
• MTBF: 100,000 hours; MTTR: 2 hours.
• Auxiliary contacts: 1 aux output, dry contact. Rated load: 0.3 A at 125 VAC; 1 A at 30 VDC.
• Contact ratings: resistive load; max switching current 1 A; max switching voltage 125 VAC / 60 VDC.
• Echo cancellation: G.167 / G.168.
• Audio codecs: G.711, G.722, G.729.
• IP protocols: IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP.
• Free dial (max length of each number: 16 digits).
• Full duplex 2-way hands-free communication.
• Network: 10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better.
• Power: Power over Ethernet (IEEE802.3af, Class 0) or local power 12 VDC; Idle 2W, Max 10W.
• Programming: Non-volatile flash memory; configuration via Web GUI.
• Management & operation: DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED.
• LAN protocols: PoE (802.3af), Network Access Control (IEEE 802.1x), STP / RSTP support.

Applications

• Elevator emergency communication for tunnels, metro, railway, LRT, speedway, airports, marine/ship/offshore, mines, power plants, bridges and similar environments.

Caractéristiques / Spécifications techniques

• Model: KNZD-13.
• Unit size: 170 × 130 × 40 mm.
• Material: Cold-roll steel sheets.
• Unit weight (N.W.): 1.5 kg.
• Ingress protection (feature): IP55 (waterproof & dust proof); certification section references GB4208-93 IP66 for ingress protection.
• Operating temperature range: -30°C to +75°C (feature) / -30°C to +60°C (ambient in analogue spec).
• MTBF: 100,000 hours; MTTR: 2 hours.
• Packing: 1 pcs packing box size 310 × 240 × 130 mm (N.W. 1.5 kg; G.W. 3.2 kg); 16 pcs per outer carton (outer carton size and weights provided in product packaging info).
